002313102 DIII 50A
ETI DIII Time Delay-Fuse: 50 Amps, 500 Vac/50 kA, 600 Vdc/8 kA, Operating Class: DZ, Type: DIII, for Fuse Base Size: E33
002313102 DIII 50A
Product Salient Features:
- Class DZ D/Bottle-Fuses
- Suitable for protection of Electrical Installations, Control and Signal Circuits against Over-Load and Short-Circuit currents
- Confirming to IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1
- All Fuses have blown fuse indicator
- Fuse Bases/Holders and Accessories are available on request at extra cost
Optional
- Available Rated Current: 35, 50, 63 Amps
- Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: 00231310*
Fuse Type: DIII Time Delay
Current Rating (A): 50 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 600 Vdc
DC Breaking Capacity (kA): 8 kA
Size: DIII / E33
Fuse Blown Indicator: Yes
Standards: IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1
Packaging Quantity (Pcs.): 25
Weight (Grams): 49
Special Notes

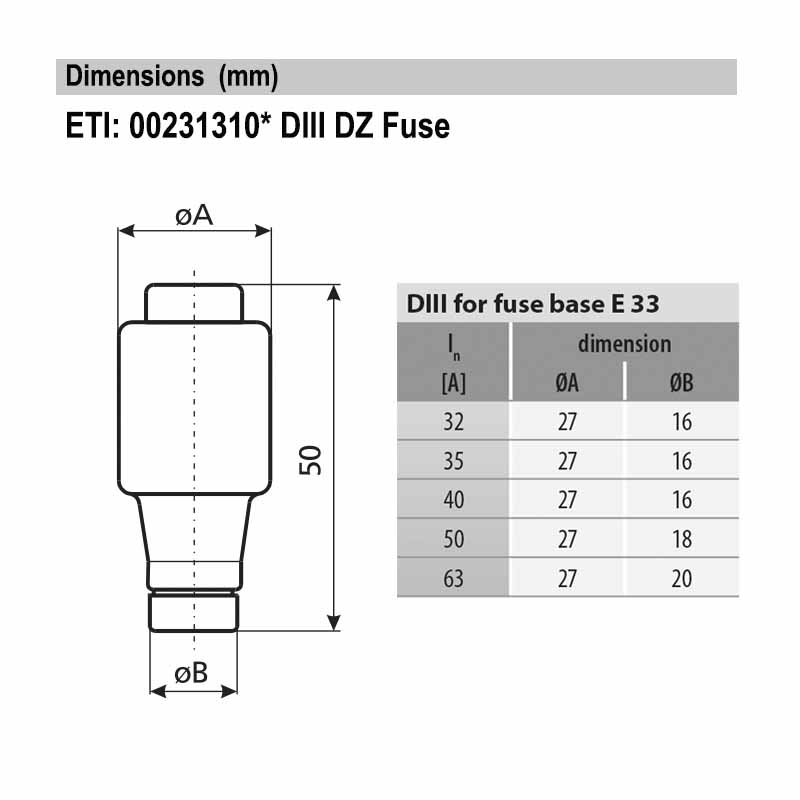

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Associated Products
Part No:
002313101 DIII 35A
ETI
ETI DIII Time Delay-Fuse: 35 Amps, 500 Vac/50 kA, 600 Vdc/8 kA, Operating Class: DZ, Type: DIII, for Fuse Base Size: E33
Packaging:
25
Minimum:
25
Multiples of:
25
Part No:
002313103 DIII 63A
ETI
ETI DIII Time Delay-Fuse: 63 Amps, 500 Vac/50 kA, 600 Vdc/8 kA, Operating Class: DZ, Type: DIII, for Fuse Base Size: E33
Packaging:
25
Minimum:
25
Multiples of:
25
