PV12A10F 12A

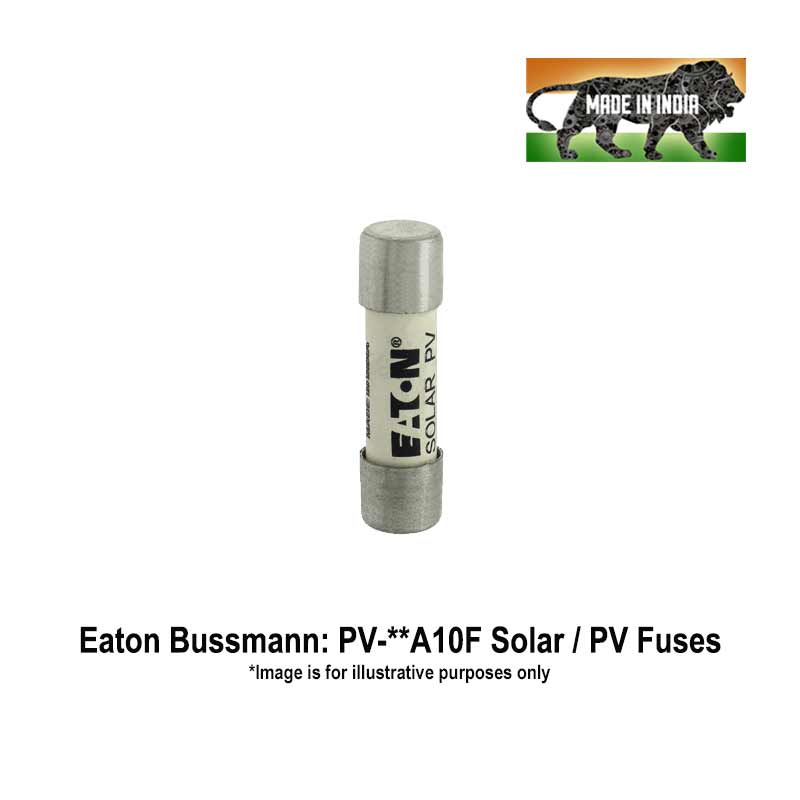

Eaton Bussmann Cylindrical Solar/PV-Fuses: 12 Amps, 1000 Vdc/50kA, Operating Class: gPV, Size: 10x38mm, without Indicator

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
PDF-Icon PV12A10F 12A
Packaging Quantity: 10
Minimum Order Quantity: 20
Order in Multiples of Quantity: 10
Required Quantity:
Price on Request

Product Salient Features:

  • Specifically designed to protect and isolate Photovoltaic Strings
  • Capable of interrupting low overcurrents associated with faulted PV string arrays (reverse current, multi-array fault)
  • IEC® 60269-6, UL® Listed to 248-19 (File E335324)
  • CSA® File 53787, Class 1422-30 (1 to 15 A), CCC, RoHS compliant

Optional

  • Available Rated Current: 1, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 12, 15, 16, 20 Amps
  • Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: PV**A10F
Fuse Type: Cylindrical PV
Operating Class: gPV
Current Rating (A): 12 Amps
Voltage Rating (Vdc): 1000 Vdc
DC Breaking Capacity (kA): 50 kA

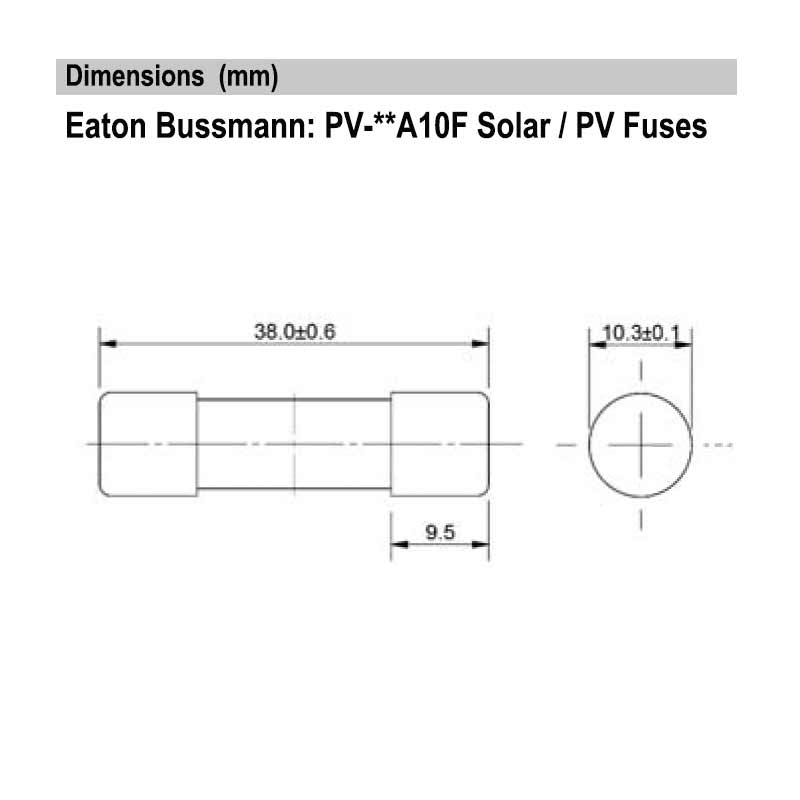

Size: 10x38mm
Pre-Arcing I2t Value A2s: 12
Total I2t Value A2s: 120
Power Loss (W): 2.7 W
Fuse Blown Indicator: NA
Standards: IEC® 60269-6, UL® Listed to 248-19 (File E335324), CSA® File 53787 Class 1422-30 (1 to 15 A), CCC, RoHS compliant
Packaging Quantity (Pcs.): 10
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
