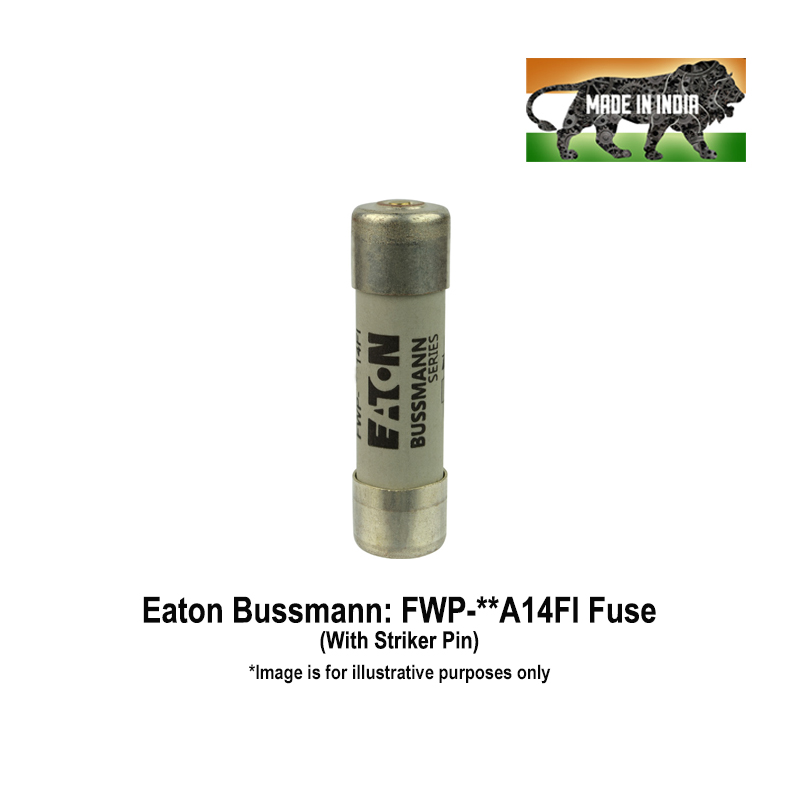

FWP-50A14FI

Eaton Bussmann Cylindrical Semiconductor Protection Fuses: 50 Amps, 700 Vac, 200 kA, 600 Vdc, Operating Class: aR, Size: 14x51mm, with Striker Pin

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 10
Minimum Order Quantity: 10
Order in Multiples of Quantity: 10
Required Quantity:
Price on Request

Product Salient Features:

  • Designed and tested to IEC 60269-4
  • CE

Optional

  • Available Rated Current: 10, 15, 20, 25, 30, 32, 40, 50 Amps
  • Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: FWP-*A14FI
Fuse Type: Cylindrical aR
Operating Class: aR
Current Rating (A): 50 Amps
Voltage Rating (Vac): 700 Vac
AC Breaking Capacity (kA): 200 kA
Voltage Rating (Vdc): 600 Vdc
Size: 14x51mm
Pre-Arcing I2t Value A2s: 200
Total I2t Value A2s: 1800
Power Loss (W): 9.0 W
Fuse Blown Indicator: With Striker Pin
Standards: IEC 60269-4, CE
Packaging Quantity (Pcs.): 10
Special Notes

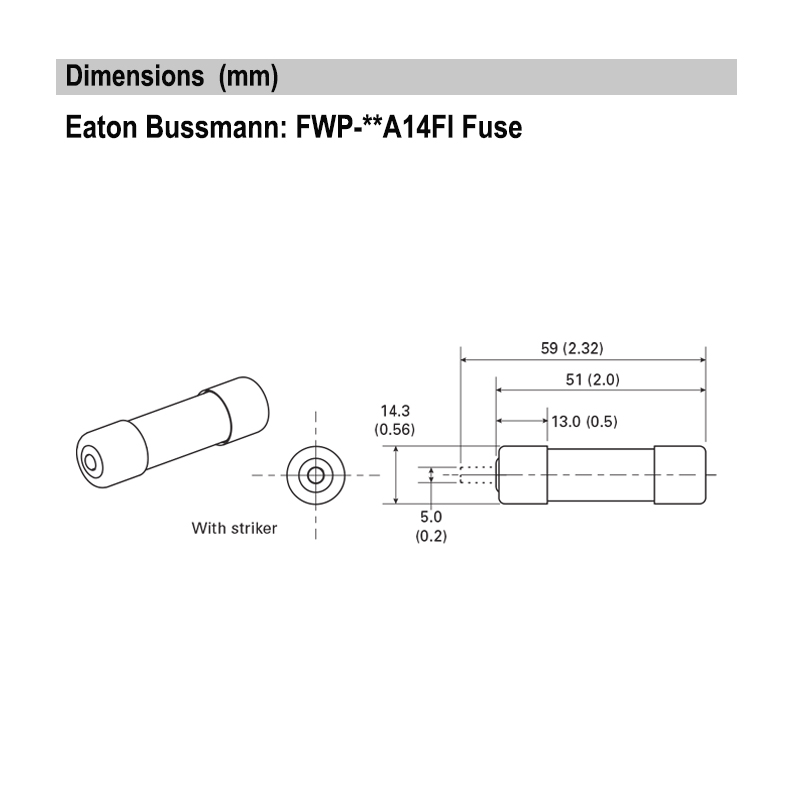

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
