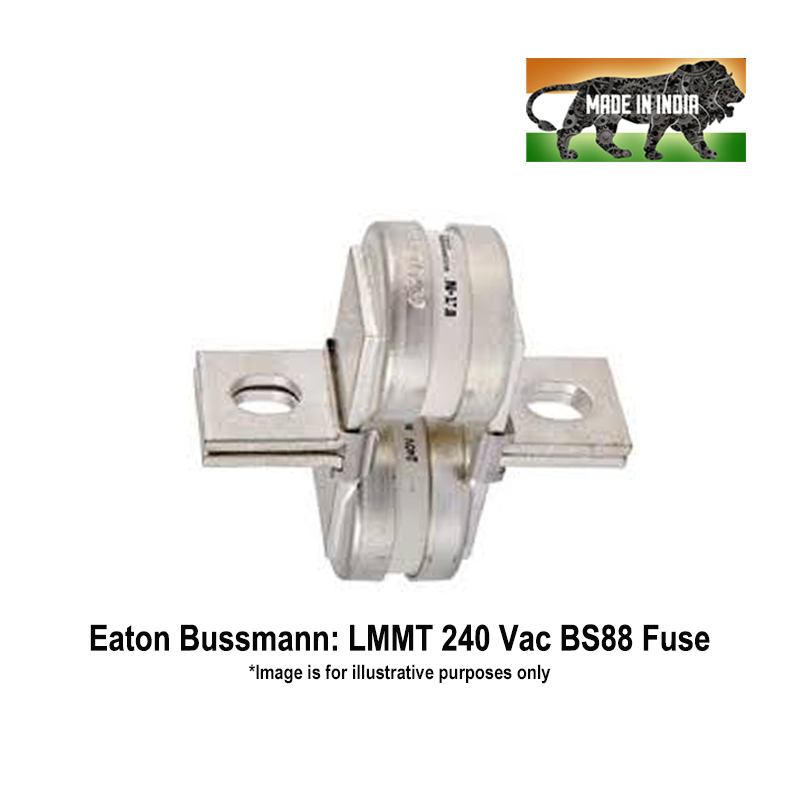

800LMMT
Eaton Bussmann BS88 Semiconductor Protection Fuses: 800 Amps, 240/250 Vac, 150 Vdc, Size: 2x38x59mm
800LMMT
Product Salient Features:
- Bolted Tag High Speed Fuses in compact design
- Designed and tested to BS88 Part 4 and IEC 60269 Part 4
- Superior current limiting features
- Fuses for protection of DC Common Bus, DC Drives, Power Converters/Rectifiers, Starters
- High-speed clearance of AC/DC faults
- Low Watts loss in a compact size
- Operating Class: aR
Optional
- Available Rated Current: 400, 500, 630, 710, 800, 900 Amps
- Wide range of Accessories: Trip Indicators (with or without clips)
- Optional Adapters/Micro Switches for remote indication/monitoring
Technical Data
Manufacturer: Eaton Bussmann
Series: LMMT
Fuse Type: BS88 240 Vac Fuses
Current Rating (A): 800 Amps
Voltage Rating (Vac): 240 Vac
AC Breaking Capacity (kA): 200 kA
Voltage Rating (Vdc): 150 Vdc
DC Breaking Capacity (kA): 50 kA

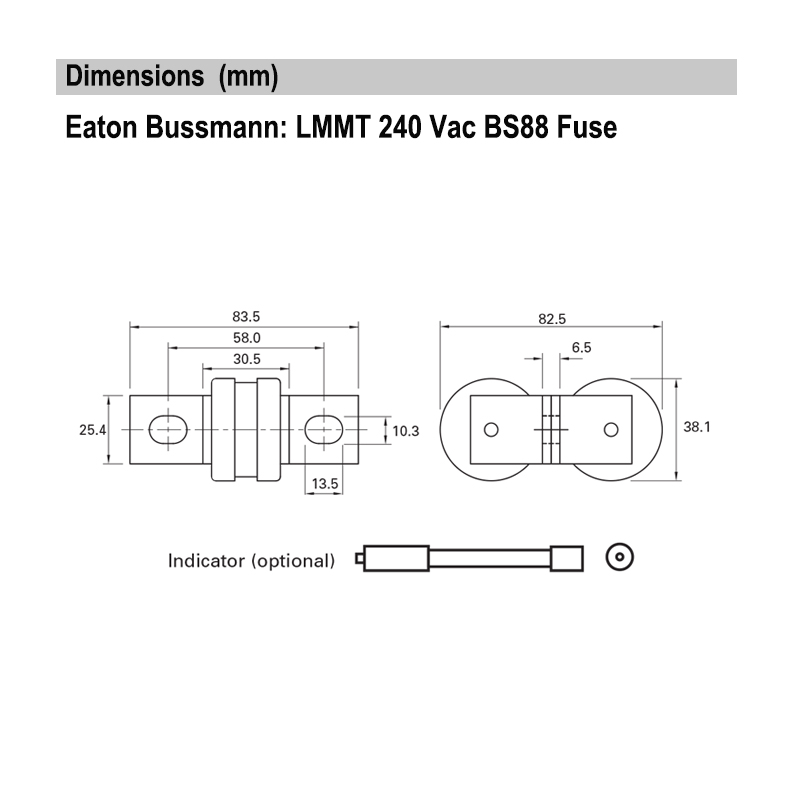

Size: 2x38x59mm
Pre-Arcing I2t Value A2s: 52000
Total I2t Value A2s: 600000
Power Loss (W): 82.0 W
Fuse Blown Indicator: Clip-On - Optional
Standards: BS88-4 / IEC60269-4 / UL / CE
Packaging Quantity (Pcs.): 1
Weight (Grams): 370
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Part No:

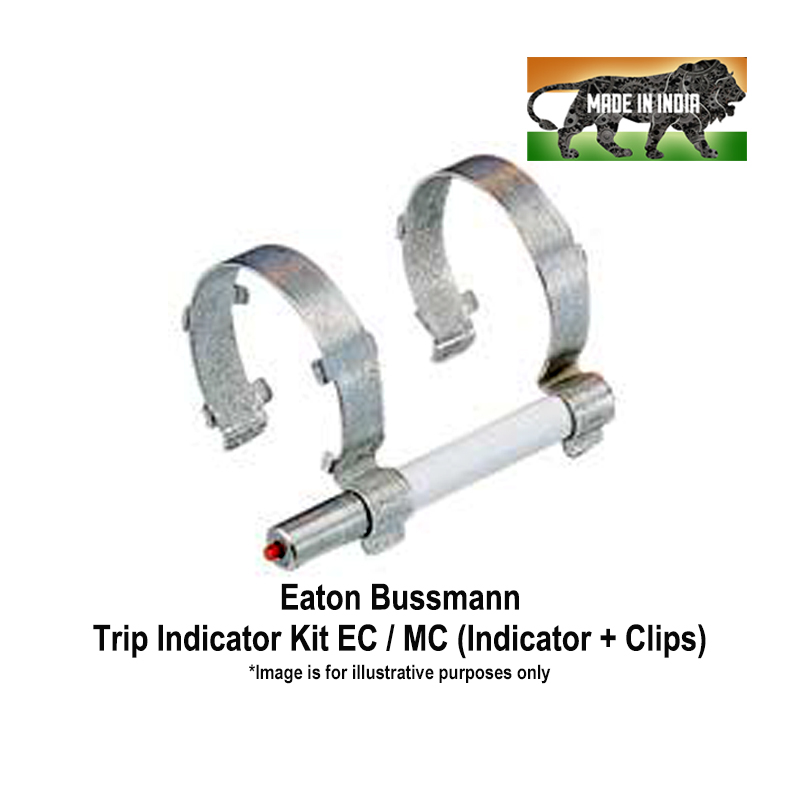

MC-250
Eaton Bussmann
Eaton Bussmann Trip Indicator Accessory Pack for use with LMT, LMMT - BS88 Semiconductor Protection Fuses
Packaging:
1
Minimum:
2
Multiples of:
1
Part No:

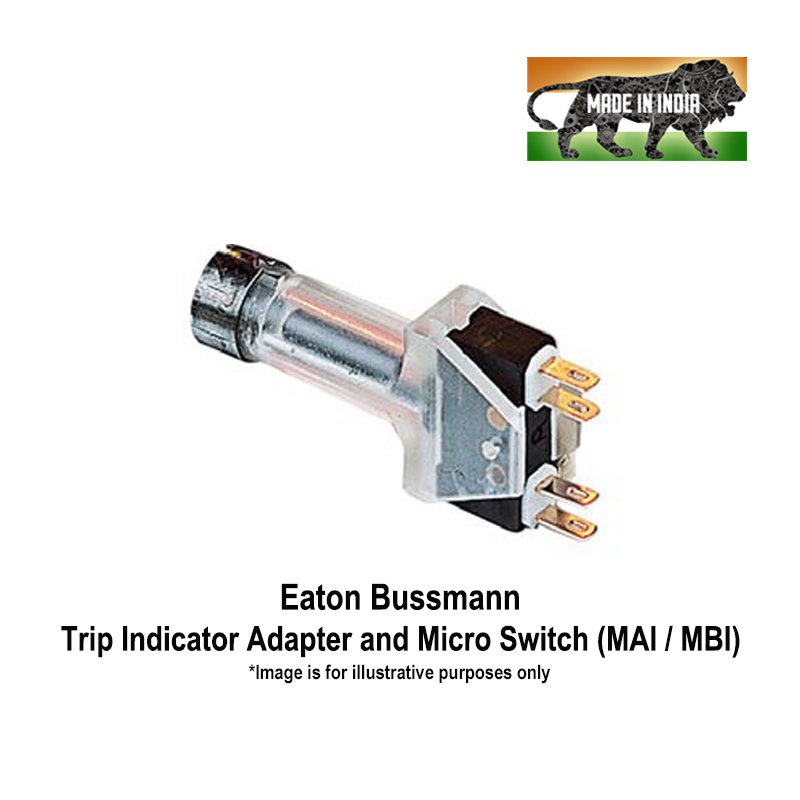

MBI
Eaton Bussmann
Eaton Bussmann Trip Indicator Adapter and Micro Switch with side terminals for use with BS88 Semiconductor Protection Fuses
Packaging:
1
Minimum:
2
Multiples of:
1
Part No:

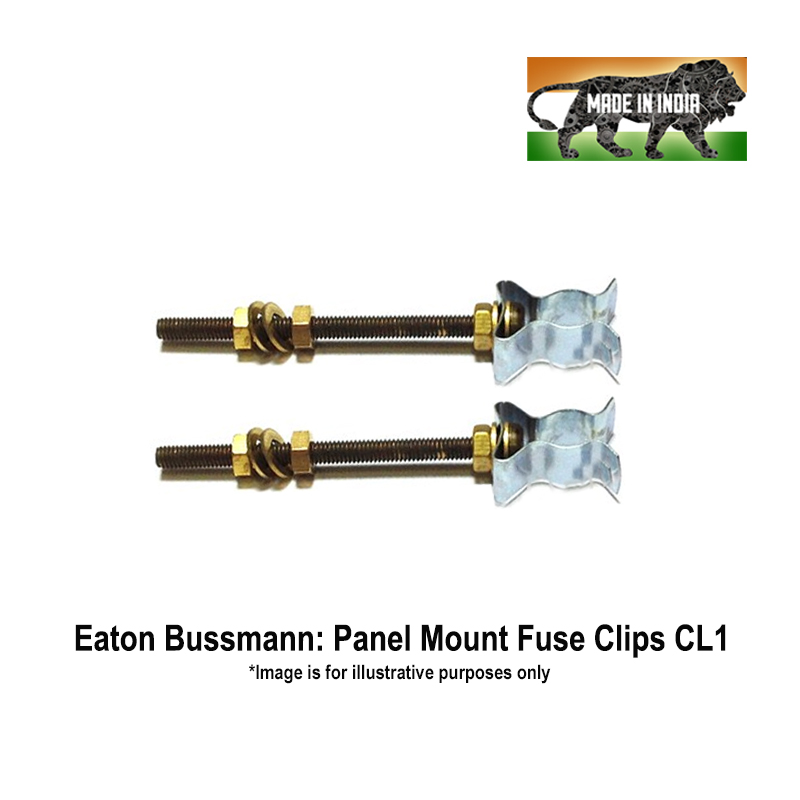

CL1
Eaton Bussmann
Eaton Bussmann Panel mount Fuse Clips for fitting Trip Indicator Fuse of BS88 Semiconductor Protection Fuses
Packaging:
1
Minimum:
2
Multiples of:
1
Part No:
MAI
Eaton Bussmann
Eaton Bussmann Trip Indicator Adapter and Micro Switch with bottom terminals for use with BS88 Semiconductor Protection Fuses
Packaging:
1
Minimum:
2
Multiples of:
1
Part No:

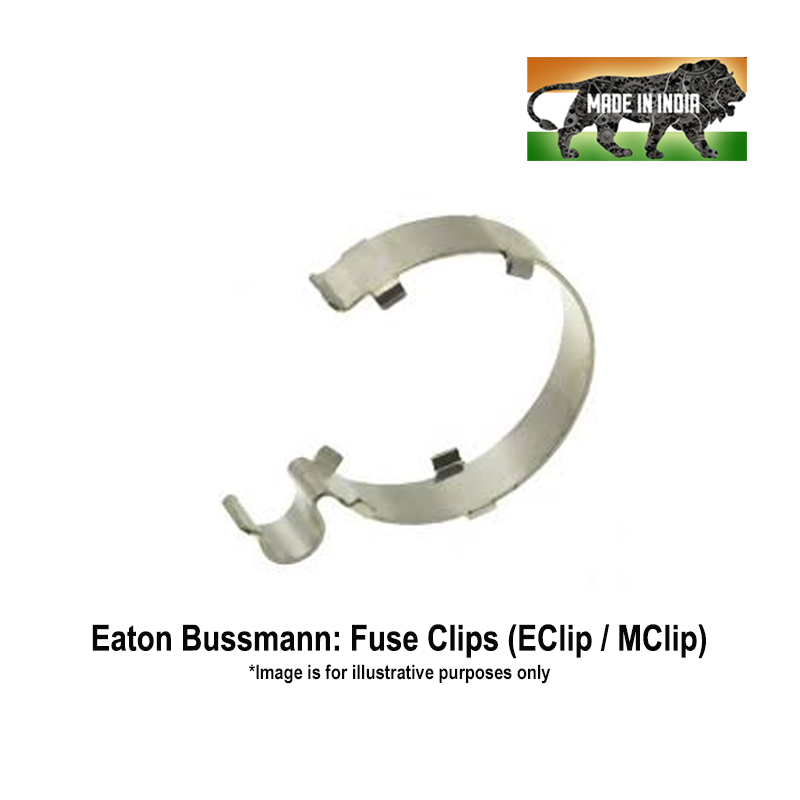

MCLIP
Eaton Bussmann
Eaton Bussmann Fuse Clips for fitting Trip Indicator for use with LMT, LMMT, MT, MMT, FM, FMM - BS88 Semiconductor Protection Fuses
Packaging:
1
Minimum:
2
Multiples of:
1
Part No:

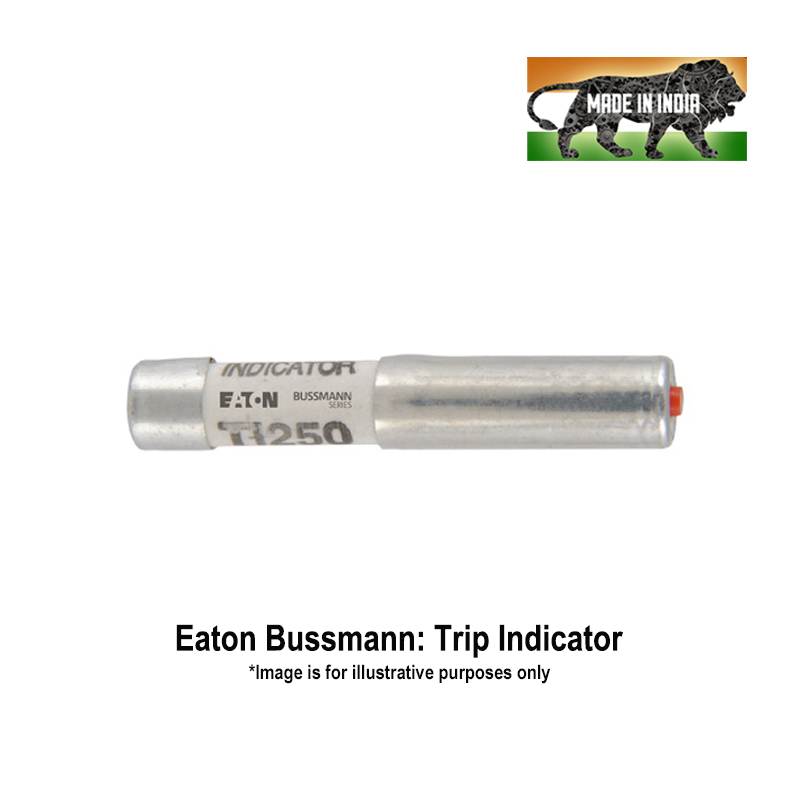

TI250-BT
