Eaton Bussmann BS88 Semiconductor Protection Fuses: 400 Amps, 690/700 Vac, 450 Vdc, Size: 2x38x84mm

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 3
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Bolted Tag High Speed Fuses in compact design
  • Designed and tested to BS88 Part 4 and IEC 60269 Part 4
  • Superior current limiting features
  • Fuses for protection of DC Common Bus, DC Drives, Power Converters/Rectifiers, Starters
  • High-speed clearance of AC/DC faults
  • Low Watts loss in a compact size
  • Operating Class: aR


  • Available Rated Current: 400, 450, 500, 550, 630, 700 Amps
  • Wide range of Accessories: Trip Indicators (with or without clips)
  • Optional Adapters/Micro Switches for remote indication/monitoring
Technical Data
Manufacturer: Eaton Bussmann
Series: FMM
Fuse Type: BS88 690 Vac Fuses
Operating Class: aR
Current Rating (A): 400 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 200 kA
Voltage Rating (Vdc): 450 Vdc
DC Breaking Capacity (kA): 40 kA

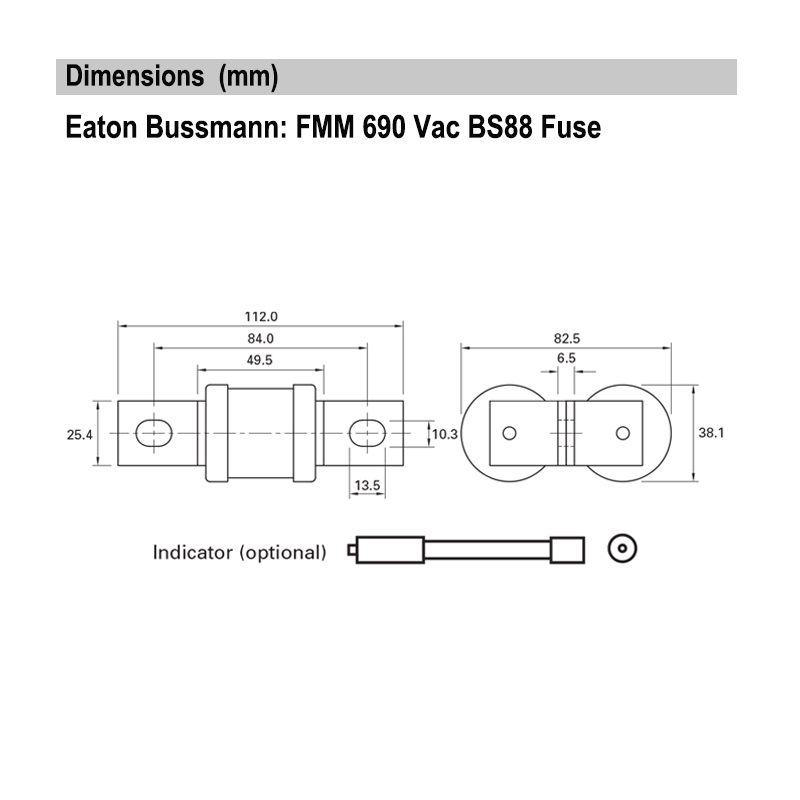

Size: 2x38x84mm
Pre-Arcing I2t Value A2s: 10000
Total I2t Value A2s: 72500
Power Loss (W): 85.0 W
Fuse Blown Indicator: Clip-On - Optional
Standards: BS88-4 / IEC60269-4 / UL / CE
Packaging Quantity (Pcs.): 1
Weight (Grams): 450
