170M5810D

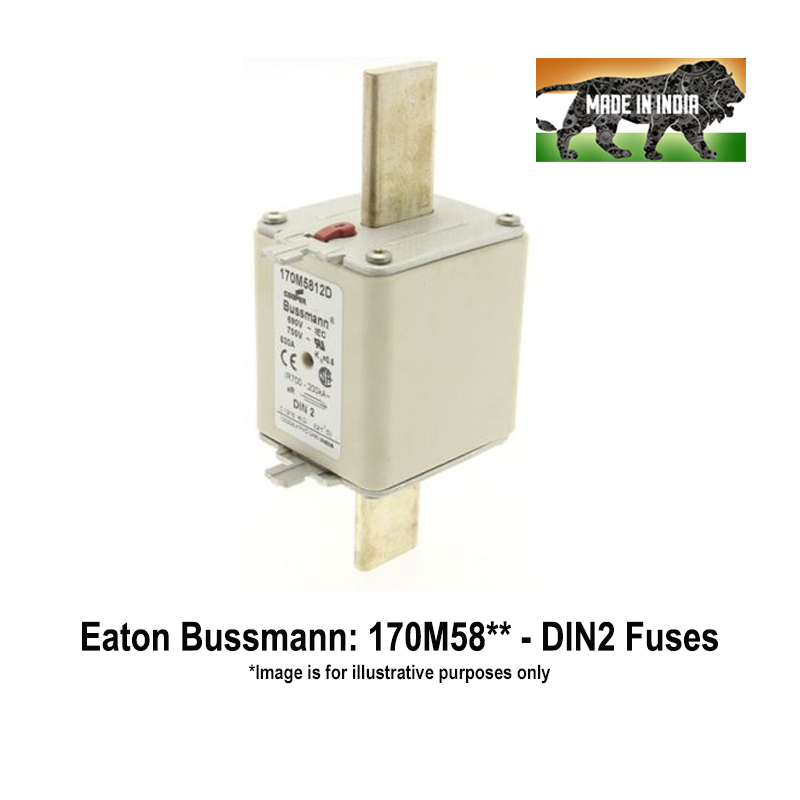

Eaton Bussmann DIN Knife Blade Semiconductor Protection Fuses with Dual Indicator: 500 Amps, 690/700 Vac/200 kA, Operating Class: aR, Size: DIN2/NH2

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 5
Minimum Order Quantity: 3
Order in Multiples of Quantity: 3
Required Quantity:
Price on Request

Product Salient Features:

  • Class aR Semiconductor Protection Fuses
  • Confirming to DIN 43620, IEC 60269-4, CE
  • UL recognised, JFHR2, E125085
  • CSA Class 1422-30, (53787)
  • All Fuses have Dual blown fuse indicator

Optional

  • Available Rated Current: 400, 450, 500, 550, 630, 700 Amps
  • Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: 170M58**D
Fuse Type: High Speed Knife Blade
Operating Class: aR
Current Rating (A): 500 Amps
Voltage Rating (Vac): 690/700 Vac
AC Breaking Capacity (kA): 200 kA
Size: DIN2/NH2
Pre-Arcing I2t Value A2s: 21500
Total I2t Value A2s: 145000
Power Loss (W): 75.0 W
Fuse Blown Indicator: Dual
Standards: CE/IEC60269-4/UL JFHR2 E125085/ CSA Class 1422-30 (53787)
Packaging Quantity (Pcs.): 5
Weight (Grams): 600
Special Notes

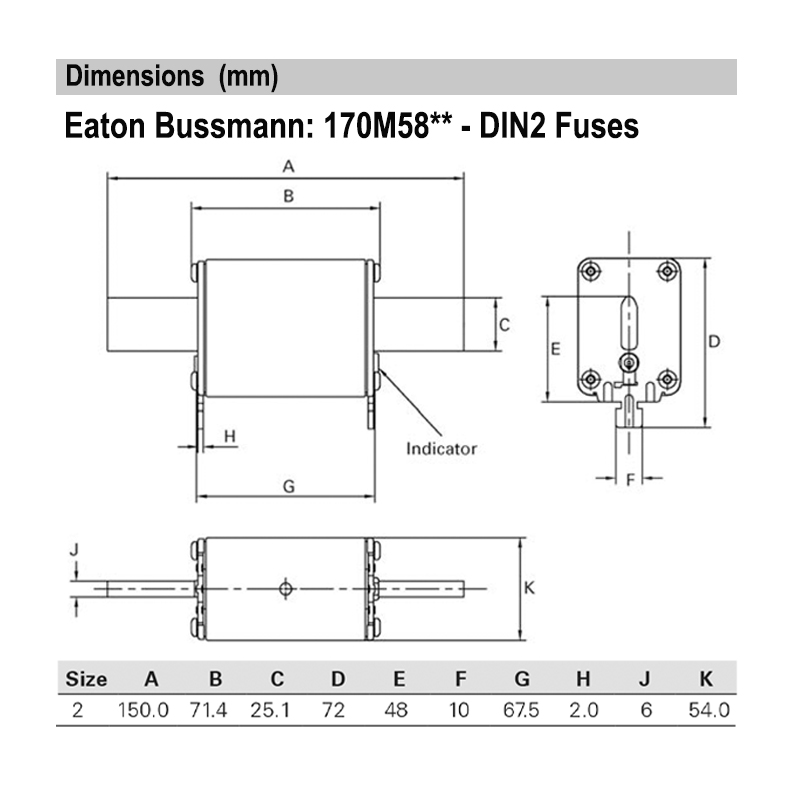

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
