170M2620 350A

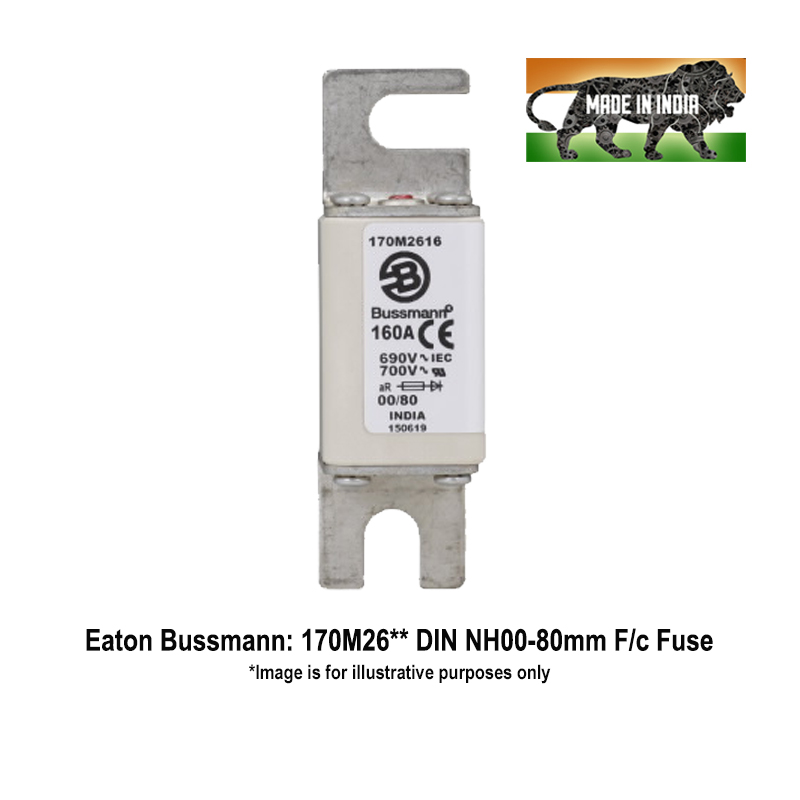

Eaton Bussmann Bolted Contact Semiconductor Protection Fuses: 350 Amps, 690/700 Vac/200 kA, Operating Class: aR, Size: DIN00/80mm

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 5
Minimum Order Quantity: 3
Order in Multiples of Quantity: 3
Required Quantity:
Price on Request

Product Salient Features:

  • Class aR Semiconductor Protection Fuses
  • Confirming to CE, DIN 43653, IEC 60269-4
  • Confirming to UL JFHR2 E125085, CSA Class 53787 File 1422-30
  • All Fuses have top blown fuse indicator

Optional

  • Available Rated Current: 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 350, 400 Amps
  • Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: 170M26**
Fuse Type: 80mm Bolted Contact
Operating Class: aR
Current Rating (A): 350 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 200 kA
Size: DIN/NH00-80mm
Pre-Arcing I2t Value A2s: 13500
Total I2t Value A2s: 91500
Power Loss (W): 60.0 W
Fuse Blown Indicator: Visual Indicator
Standards: CE/DIN 43653/IEC 60269-4/UL JFHR2 E125085/CSA Class 53787 File 1422-30
Packaging Quantity (Pcs.): 5
Weight (Grams): 210
Special Notes

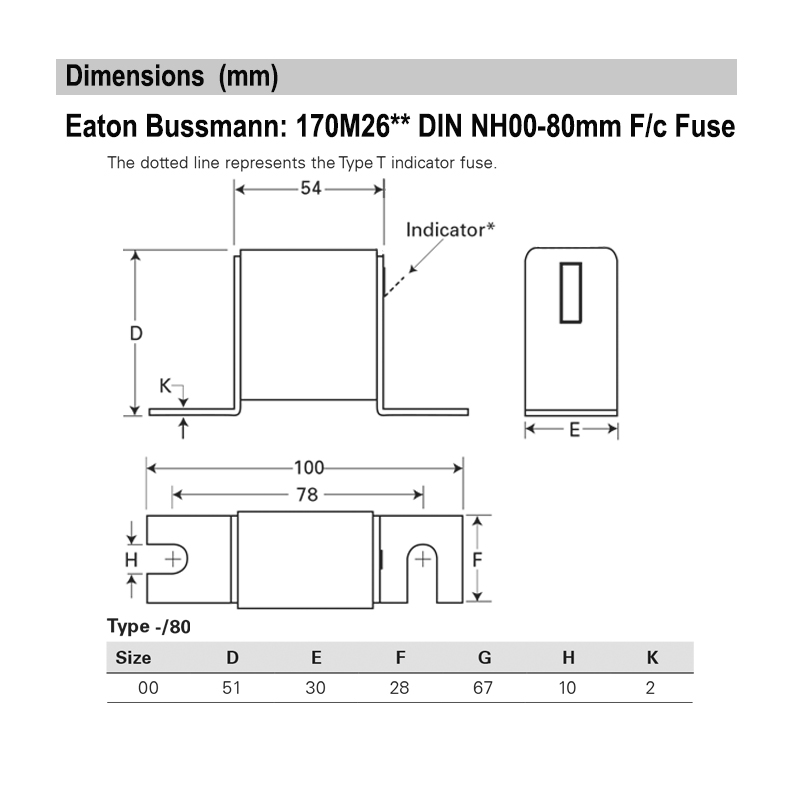

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
