422100 100A

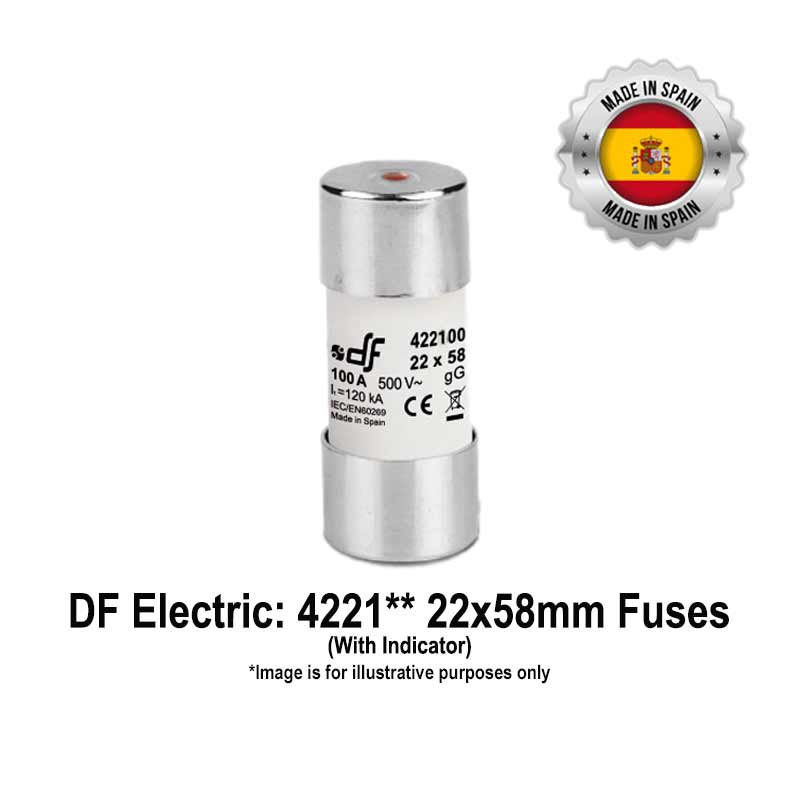

DF Electric Industrial Cylindrical Fuses: 100 Amps, 500 Vac/120 kA, Operating Class: gL-gG, Size: 22x58mm, with Indicator

Manufacturer: DF Electric
Country of Origin : Spain
Technical Datasheet:
Packaging Quantity: 10
Minimum Order Quantity: 20
Order in Multiples of Quantity: 10
Required Quantity:
Price on Request

Product Salient Features:

  • Class gL-gG Industrial Cylindrical Fuses with Indicator
  • Breaking Capacity: 500 Vac/120 kA
  • Confirming to IEC60269-1-2, EN60269-1-2, CE
  • RoHS Approval

Optional

  • Available Rated Current: 2, 4, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 Amps
  • Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: DF Electric
Series: 4221**
Fuse Type: Cylindrical gL-gG
Operating Class: gL-gG
Current Rating (A): 100 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 120 kA
Voltage Rating (Vdc): 150 Vdc
DC Breaking Capacity (kA): 15 kA

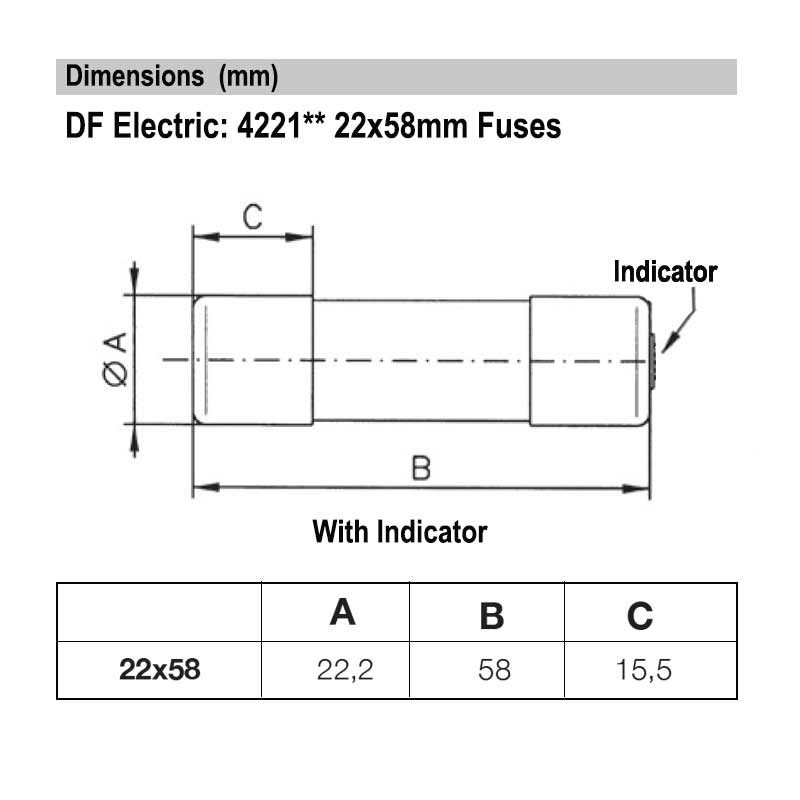

Size: 22x58mm
Pre-Arcing I2t Value A2s: 39800
Total I2t Value A2s: 91150
Power Loss (W): 7.95 W
Fuse Blown Indicator: NA
Standards: IEC, EN, RoHS, CE
Packaging Quantity (Pcs.): 10
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
