OR18.TI-ZZZP.71O-11157821

M18x1 Cylindrical Through Beam (Emitter) Photoelectric Sensor; Pulsed Infrared Diode; Sb: 13 Meters; Sn: 20 Meters; 270Ą Potentiometric Sensing Distance Adjustment; +Vs: 12-30 Vdc; M12 4-Pin Connector; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • M18x1 Cylindrical Housing
  • Pulsed Infrared Diode
  • 4 Wires DC Version
  • Uncompromising Accuracy
  • Exceptional Reliability
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : OR18
Sensor Type : Through Beam
Sensing Version : Emitter
Light Source : Pulsed Infrared Diode
Sensing Distance : 13 M
Sensing Distance Adjustment : NO
Supply Voltage : 12 to 30 Vdc
Connection Type : M12 4-Pin Connector

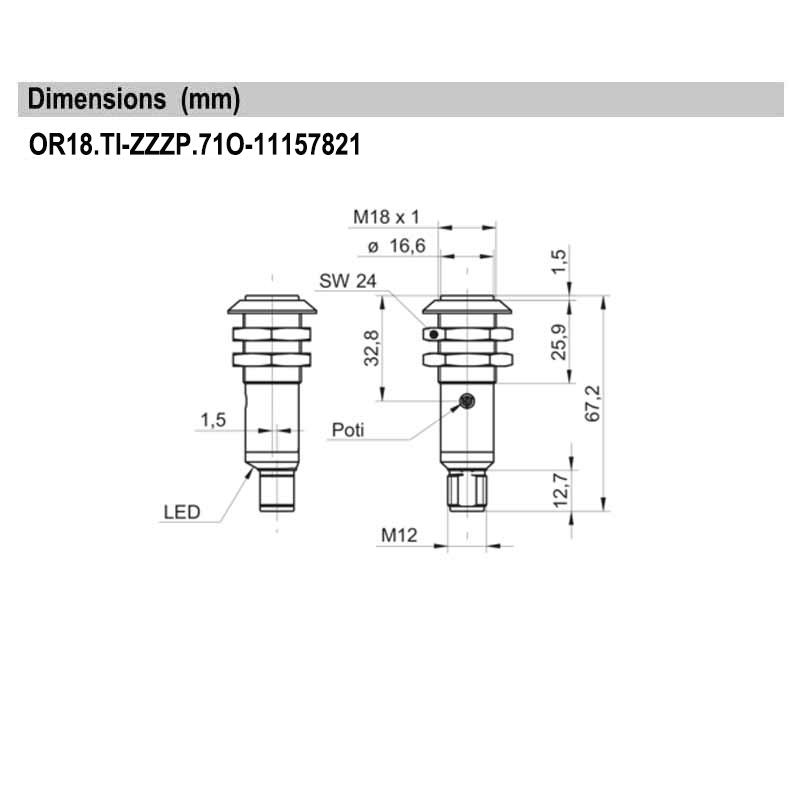

Dimensions (WxHxD /Dia.xL) : Dia.18mmxL:67.2mm
Approval : CE, UL
Operating Temperature : From -25 °C to +55 °C
Protection : IP 67
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
