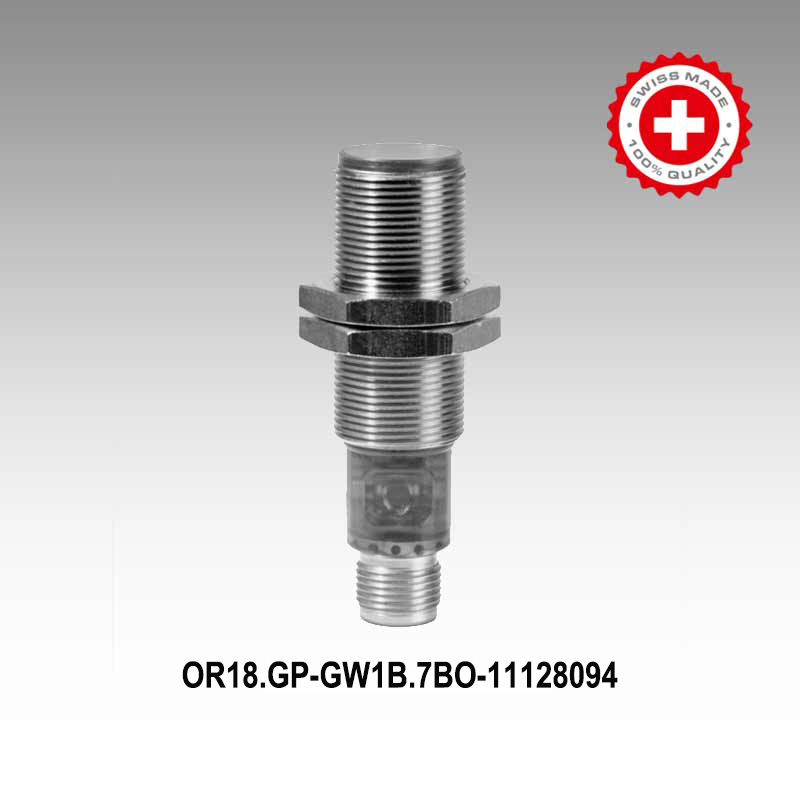

OR18.GP-GW1B.7BO-11128094

M18x1 Cylindrical Diffuse Photoelectric Sensor with background suppression; Pulsed Pinpoint LED; qTeach / External; Tw: 45-200mm; Tb: 20-200mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • M18x1 Cylindrical Housing
  • Pulsed PinPoint LED
  • 4 Wires DC (Push-Pull) Version
  • qTeach / External
  • Uncompromising Accuracy
  • Exceptional Reliability
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : OR18
Sensor Type : Diffuse
Sensing Version : Background Suppression
Light Source : Pulsed PinPoint LED
Sensing Distance : 45-200 mm
Sensing Distance Adjustment : qTeach / External
Output Function : Light/Dark Operate
Supply Voltage : 10 to 30 Vdc
Output Circuit : Push-Pull
Connection Type : M12 4-Pin Connector

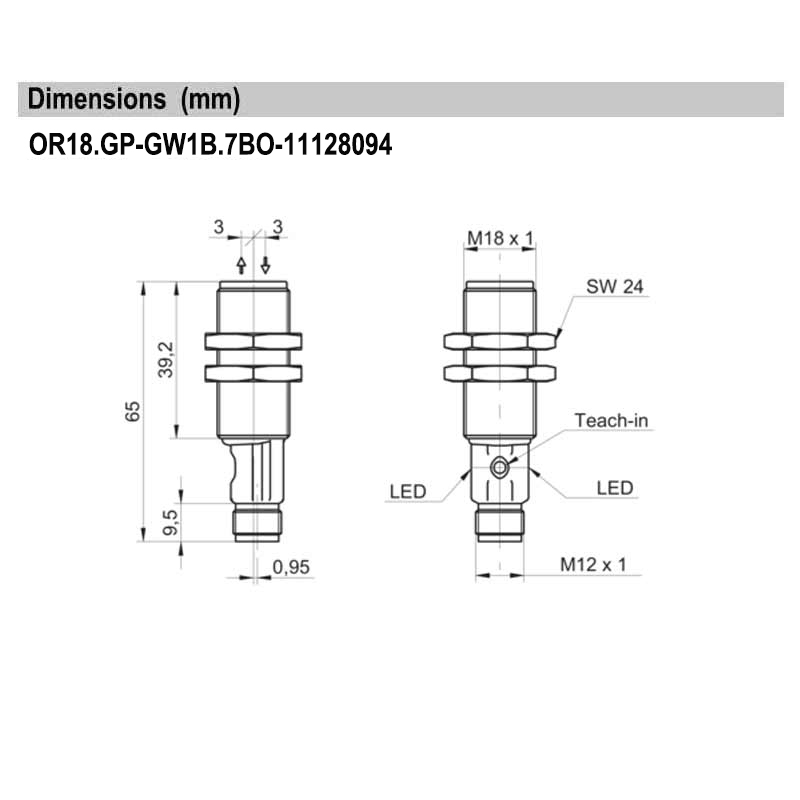

Dimensions (WxHxD /Dia.xL) : Dia.18mmxL:65mm
Approval : CE, UL
Operating Temperature : From -25 °C to +60 °C
Protection : IP 67
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
