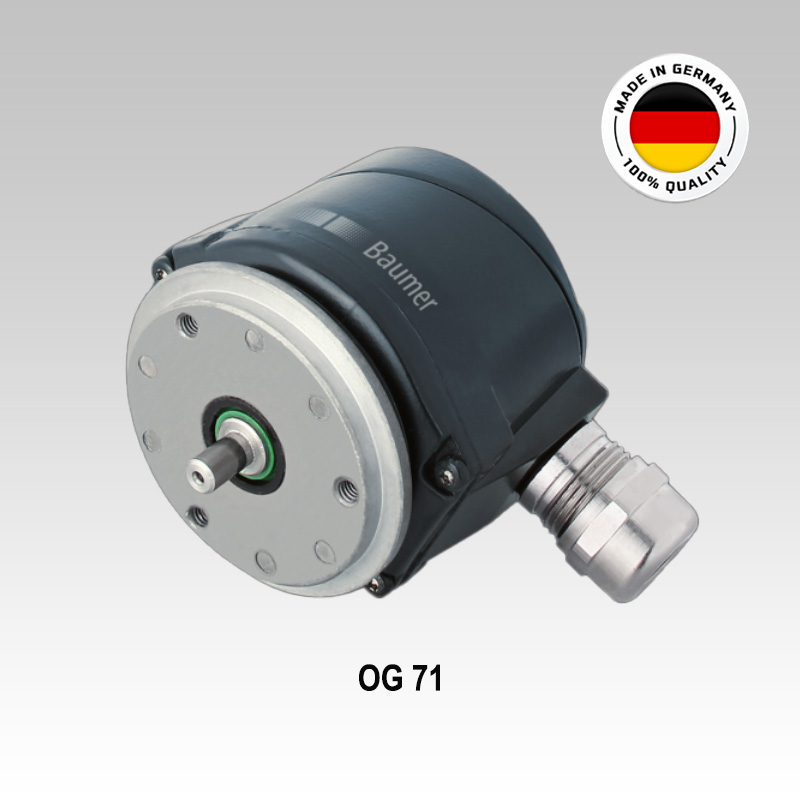

OG71DN1024CI

Robust Incremental Encoder; Synchro Flange mounting; Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 9 to 26 Vdc; HTL-C with inverted signals 6-Channels; 1024 ppr; Connecting Terminal Box with Cable Gland Entry, Radial Outlet; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

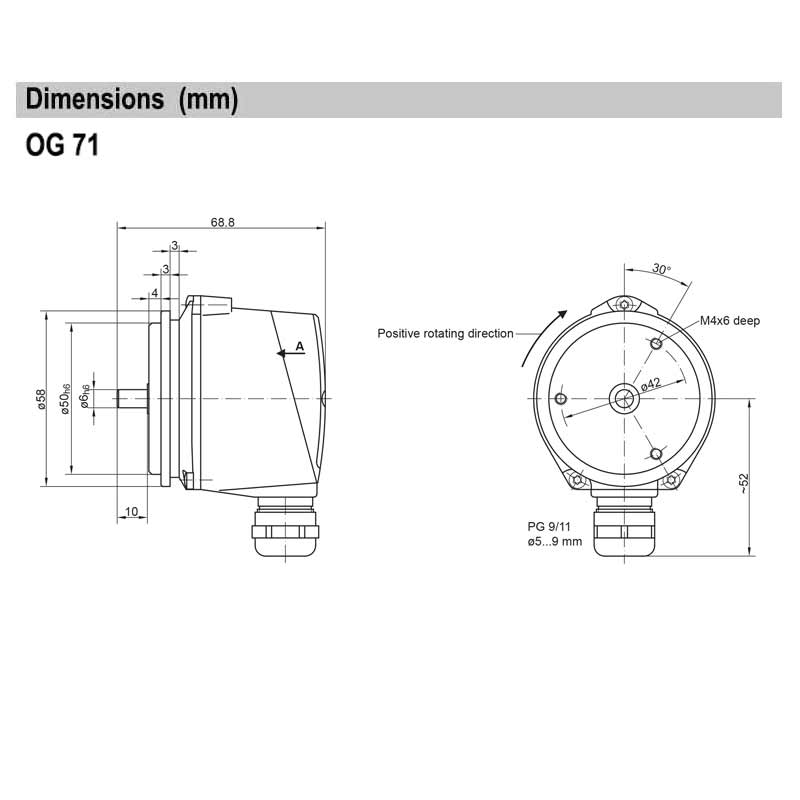

  • Body Size Dia. 58mm; Shaft Dia. 6mm, Shaft Length: 10mm
  • Precise optical sensing
  • Output Signal Level HTL / Push Pull
  • Synchro Flange mounting
  • Connection Terminal in Terminal Box with Cable Gland Entry, Radial Outlet
  • High protection IP 66 (Standard Version)
  • High resistance to shock and vibrations
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Incremental
Output Signal : HTL-C
PPR : 1024 ppr
Supply Voltage : 9 to 26 Vdc
Connection Type : Terminal Cover
Operating Temperature : From -20 °C to +85 °C
Protection : IP 66
Approval : CE, UL Approval / E256710
Weight : 0.3 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
