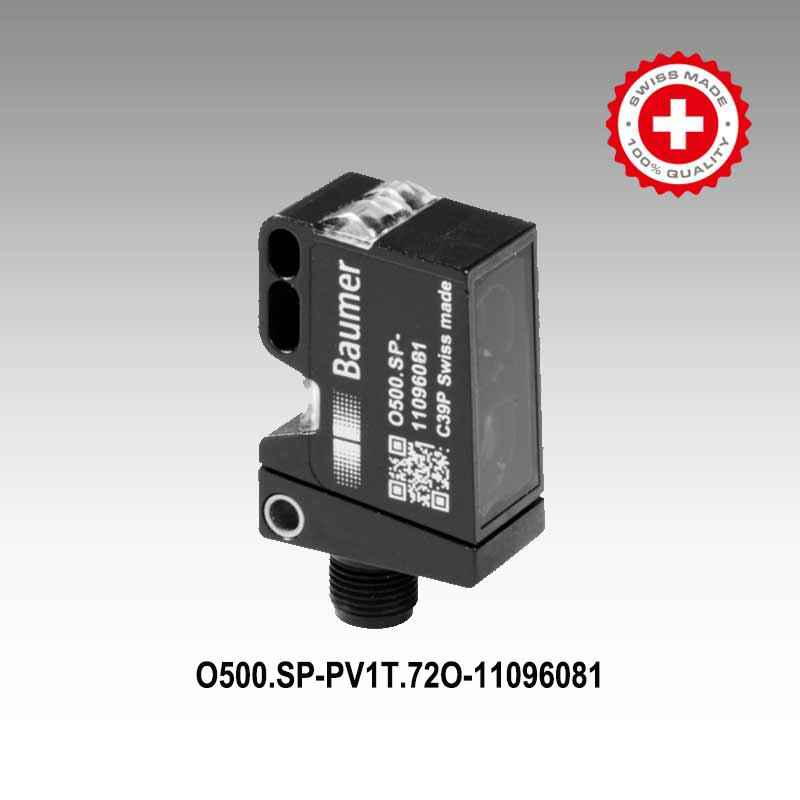

O500.SP-PV1T.72O-11096081

Miniature SmartReflect Light Barriers Photoelectric Sensor; qTeach; Pulsed PinPoint LED; Sde: 60-600mm; +Vs: 10-30 Vdc; PNP Complementary; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Technical Datasheet:
PDF-Icon O500.SP-PV1T.72O-11096081
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Miniature Rectangular Housing
  • DC Version
  • Uncompromising Accuracy
  • Exceptional Reliability
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : O500
Sensor Type : Light Barrier
Light Source : Pulsed PinPoint LED
Sensing Distance : 60-600 mm
Sensing Distance Adjustment : qTeach
Output Function : Light/Dark Operate
Supply Voltage : 10 to 30 Vdc
Output Circuit : PNP Complementary
Connection Type : M12 4-Pin Connector

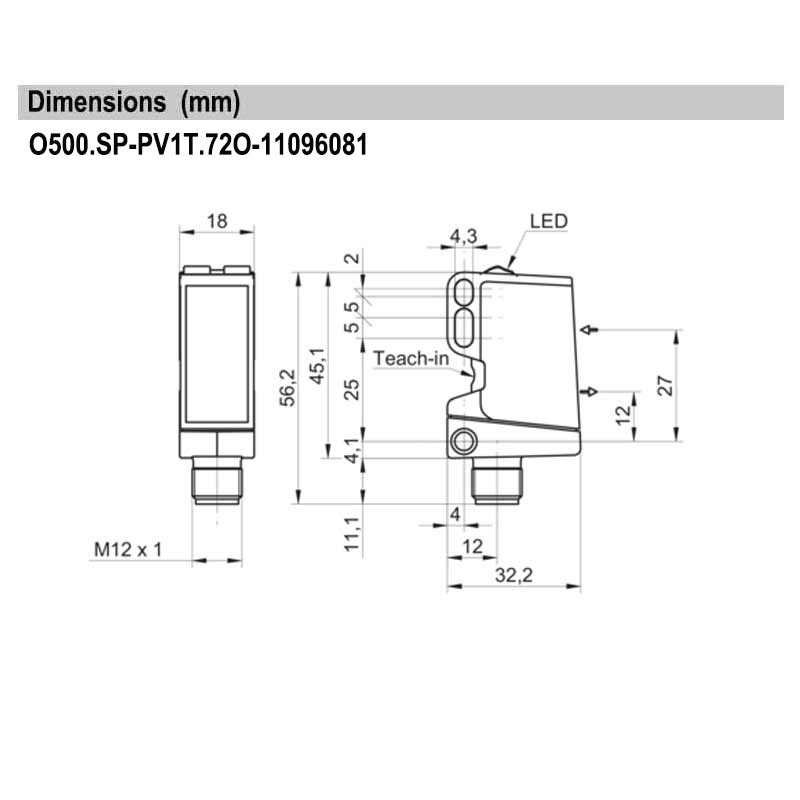

Dimensions (WxHxD /Dia.xL) : 18x45x32mm
Approval : CE, UL
Operating Temperature : From -25 °C to +60 °C
Protection : IP 67
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
