O300.SP-GW1J.72N/E022-11199086

Miniature SmartReflect (Line Beam) Light Barriers Photoelectric Sensor; Pulsed PinPoint LED; Teach-In and IO-Link; Sde: 30-120mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SmartReflect - Safe barrier principle
  • Pulsed PinPoint LED
  • Teach-In and IO-Link
  • 4 Wires DC (Push-Pull) Version
Technical Data
Manufacturer : Baumer
Series : O300
Sensor Type : Light Barrier
Sensing Version : Line Beam
Light Source : Pulsed PinPoint LED
Sensing Distance : 30-120 mm
Sensing Distance Adjustment : Teach-In and IO-Link
Output Function : Light/Dark Operate
Supply Voltage : 10 to 30 Vdc
Output Circuit : Push-Pull
Connection Type : M8 4-Pin Connector

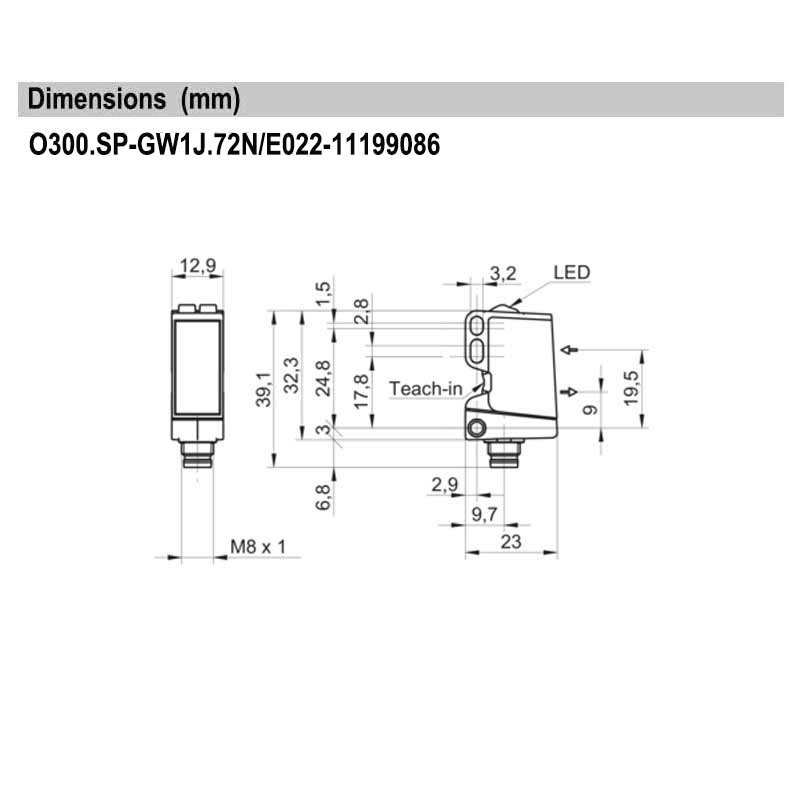

Dimensions (WxHxD /Dia.xL) : 12.9x32.3x23mm
Approval : CE, UL
Operating Temperature : From -25 °C to +60 °C
Protection : IP 67
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
