Miniature Diffuse Photoelectric Sensor with background suppression; Pulsed Infrared Diode; qTeach / External; Tw: 30-300mm; Tb: 15-300mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Miniature Diffuse Photoelectric Sensor with background suppression; Pulsed PinPoint LED; qTeach / 1-Step Teach-in; Tw: 30-200mm; Tb: 15-200mm; +Vs: 10-30 Vdc; PNP Complementary; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67
Miniature Diffuse (line beam) Photoelectric Sensor with background suppression; Pulsed PinPoint LED; Teach-In and IO-Link; Tw: 30-120mm; Tb: 15-120mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67
Miniature Diffuse (Line Beam) Photoelectric Sensor with background suppression; Pulsed Red Laser Diode; Teach-In and IO-Link; Tw: 30-120mm; Tb: 15-120mm; +Vs: 11-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67
Miniature Diffuse Photoelectric Sensor with background suppression; Pulsed PinPoint LED; qTeach / External; Tw: 30-200mm; Tb: 15-200mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67
Miniature Diffuse (Line Beam) Photoelectric Sensor with background suppression; Pulsed PinPoint LED; Teach-In and IO-Link; Tw: 30-120mm; Tb: 15-120mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67
Miniature Diffuse Photoelectric Sensor with background suppression; Pulsed Red Laser Diode; Teach-In and IO-Link; Tw: 30-250mm; Tb: 15-250mm; +Vs: 11-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; M8 4-Pin Connector; IP 67

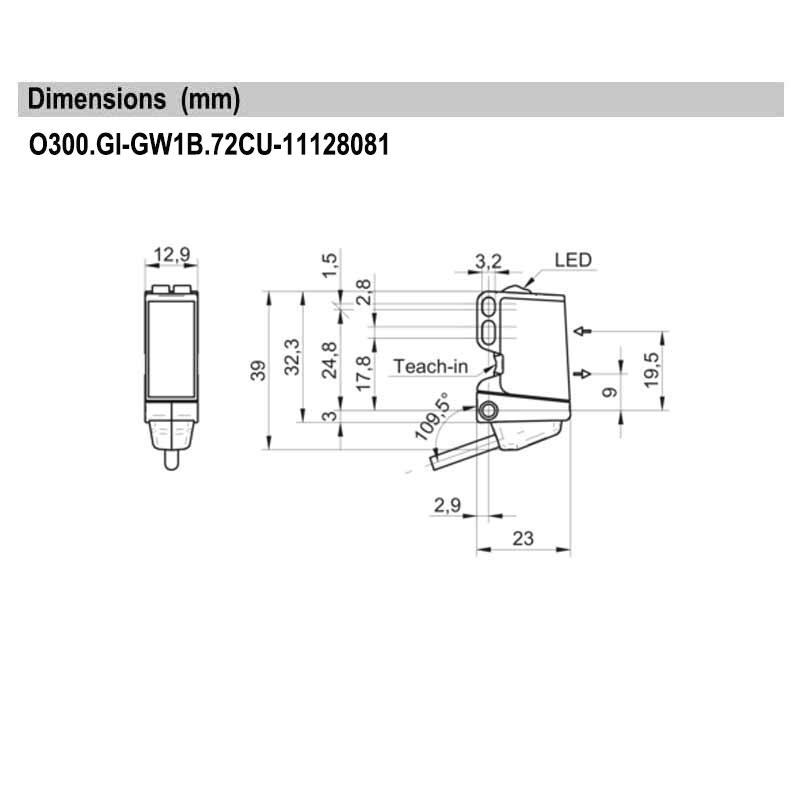

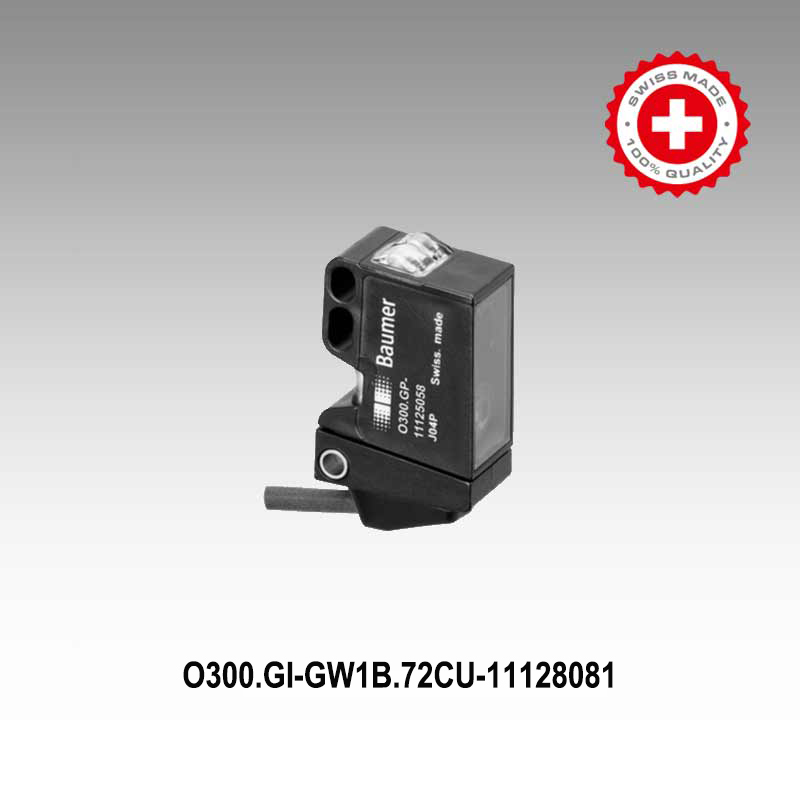

O300.GI-GW1B.72CU-11128081
