O200.SL.T-GW1J.72NV/F160-11224797

O200.SL.T-GW1J.72NV/F160-11224797

Miniature SmartReflect Light Barriers (without reflector) Photoelectric Sensor for transparent object detection; Pulsed Red Laser Diode; Teach-In and IO-Link; Sde: 15-180mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light/Dark Operate; Flylead Connector M8 4-Pin with 2-Meters prewired PVC Cable; IP 67

Manufacturer: Baumer

Country of Origin : Switzerland

Technical Datasheet:

O200.SL.T-GW1J.72NV/F160-11224797

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

SmartReflect - Safe barrier principle without reflector
Long-term stable detection of transparent objects
Manipulation-proof, simple teach-in via qTeach or line teach
IO-Link for extended parameterization options and additional diagnostic data
Robust housing with stainless steel spacer sleeves

Technical Data

Manufacturer : Baumer

Series : O200

Sensor Type : Light Barrier

Sensing Version : Transparent Object Detection

Light Source : Pulsed Red Laser Diode

Sensing Distance : 15-180 mm

Sensing Distance Adjustment : Teach-In and IO-Link

Output Function : Light/Dark Operate

Supply Voltage : 10 to 30 Vdc

Output Circuit : Push-Pull

Mechanical Mounting : SS Sleeve smooth

Connection Type : M8 4-Pin Connector with 2-M PVC Cable

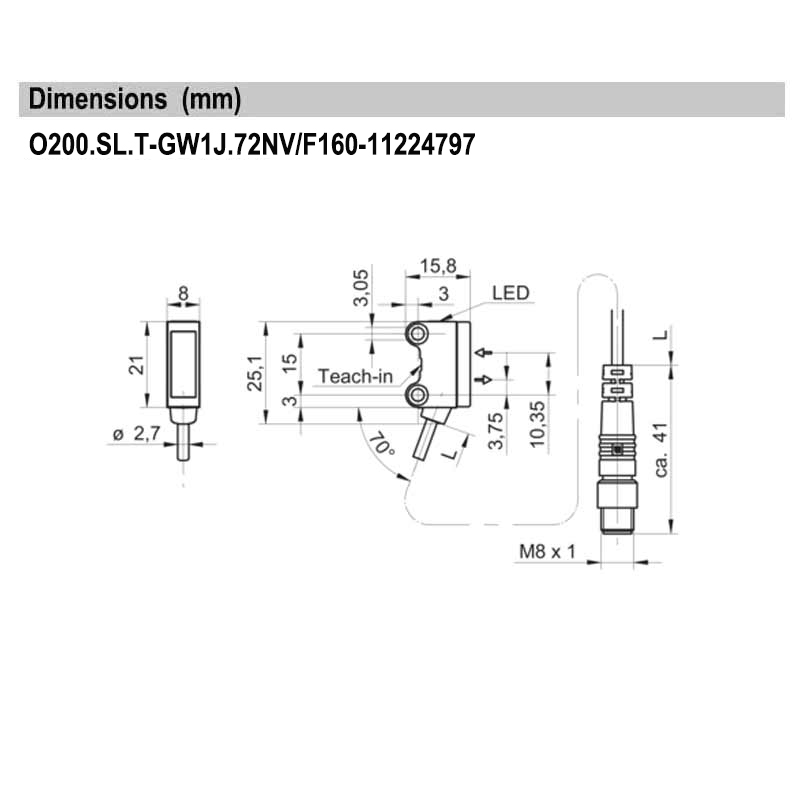

Dimensions (WxHxD /Dia.xL) : 8x25.1x15.8mm

Approval : CE, UL

Operating Temperature : From -20 °C to +50 °C

Protection : IP 67

Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
