O200.GR-GL1E.72CV/H006_T007-11208512

Miniature Diffuse Photoelectric Sensor with background suppression; External Teach-in; Pulsed Red LED; Tw: 15-80mm; Tb: 7-80mm; +Vs: 10-30 Vdc; Push-Pull; Output Function: Light Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Miniature Rectangular Housing
  • 4 Wires Push-Pull DC Version
  • External Teach-in / 1-Step Teach-in
  • Uncompromising Accuracy
  • Exceptional Reliability
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : O200
Sensor Type : Diffuse
Sensing Version : Background Suppression
Light Source : Pulsed Red LED
Sensing Distance : 15-80 mm
Sensing Distance Adjustment : External Teach-in
Output Function : Light Operate
Supply Voltage : 10 to 30 Vdc
Output Circuit : Push-Pull
Mechanical Mounting : SS threaded Sleeves M3
Connection Type : 4-Wire 2-Mtrs PVC Cable

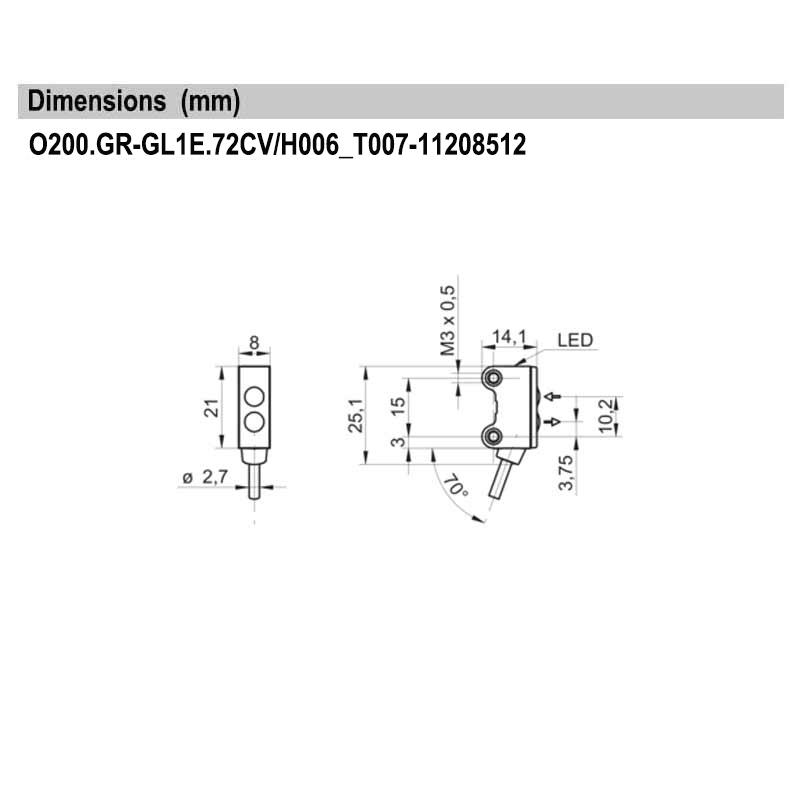

Dimensions (WxHxD /Dia.xL) : 8x25.1x14.1mm
Approval : CE, UL
Operating Temperature : From -25 °C to +50 °C
Protection : IP 67
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
