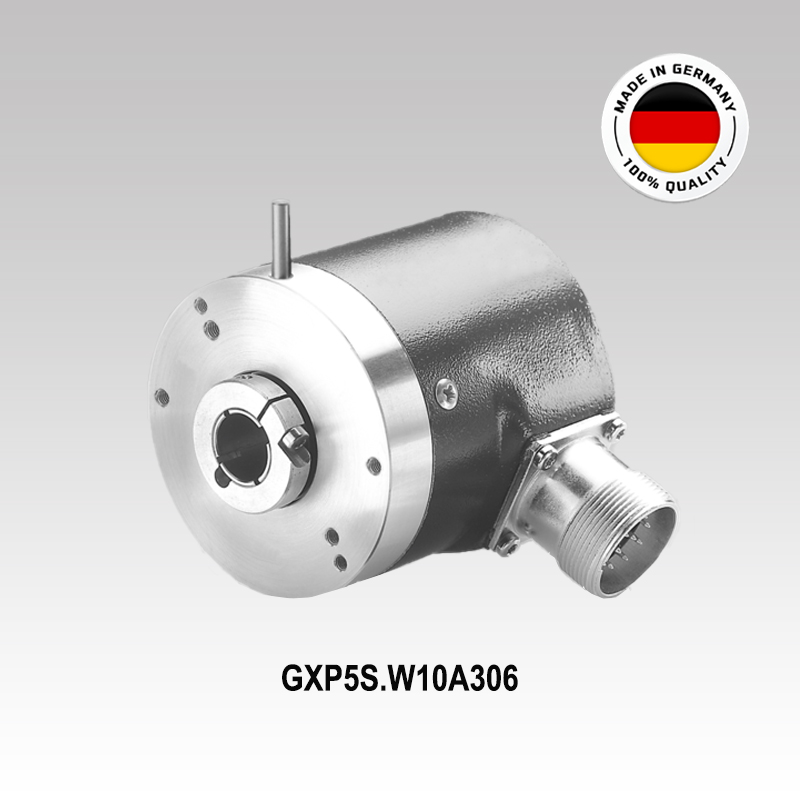

GXP5S.W10A306

Blind Hollow Shaft SingleTurn/MultiTurn Absolute Encoder; Bore Dia. 15 mm; Flange without Pin on A-Side; Supply Voltage: 10 to 30 Vdc; Interface: CANopen® CiA DSP 406 V3.0 (Galvanically Isolated); Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Flange Connector-Radial, M23, 12-Pin Male; IP 65

Manufacturer: Baumer IVO
Country of Origin : Germany
Technical Datasheet:
PDF-Icon GXP5S.W10A306
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • MultiTurn CANopen® CiA DSP 406 V3.0 galvanically isolated Absolute Encoder
  • Body Size Dia. 58mm
  • Optical sensing method
  • DUO-LED integrated in Housing
  • Permanent check of code continuity
  • Maximum resistance against magnetic fields

Optional

  • Bore Dia.: 12/14/15 mm, with/without Pin
  • Protection Class: IP 54
  • Connector: D-SUB 9-Pin Radial; M12 5-Pin Radial; 2xM12 5-Pin Axial/Radial
  • Interface: Galvanically not isolated
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 15 mm
Mounting Type : Flange
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Flange Connector Radial - M23 12-Pin
Operating Temperature : From -25 °C to +85 °C
Protection : IP 65
Approval : UL approval / E63076
Weight : 0.6 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
