GXMMS.1205P32

Blind Hollow Shaft SingleTurn/MultiTurn Absolute Encoder; Bore Dia. 12 mm; Clamping Flange with Pin 15 mm on A-Side; Supply Voltage: 10 to 30 Vdc; Interface: CANopen®; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with 3xCable Gland; IP 54

Manufacturer: Baumer IVO
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Blind Hollow Shaft Single/MultiTurn Absolute Encoder
  • Optical sensing method
  • Extreme compact design
  • Maximum resistance against magnetic fields

Optional

  • Bore Dia.: 12/14/15 mm, with/without Pin
  • Protection Class: IP 65
  • Interface: Profibus/DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/SSI/CANopen®
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : Clamping Ring
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -25 °C to +85 °C
Protection : IP 54
Approval : UL approval / E63076
Weight : 0.5 KG
Special Notes

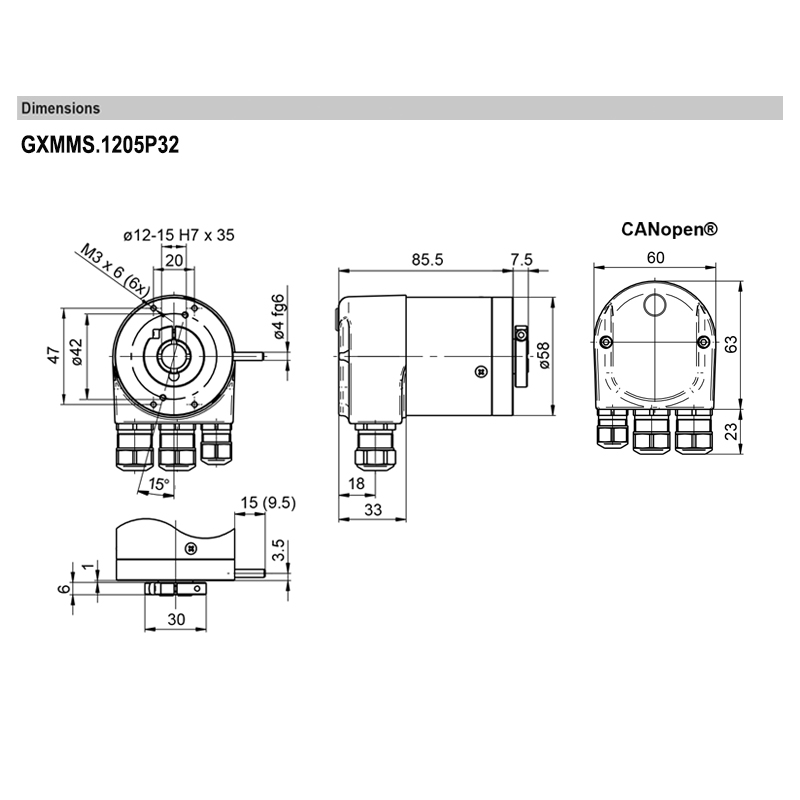

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
