GXAMW.A20EPA6

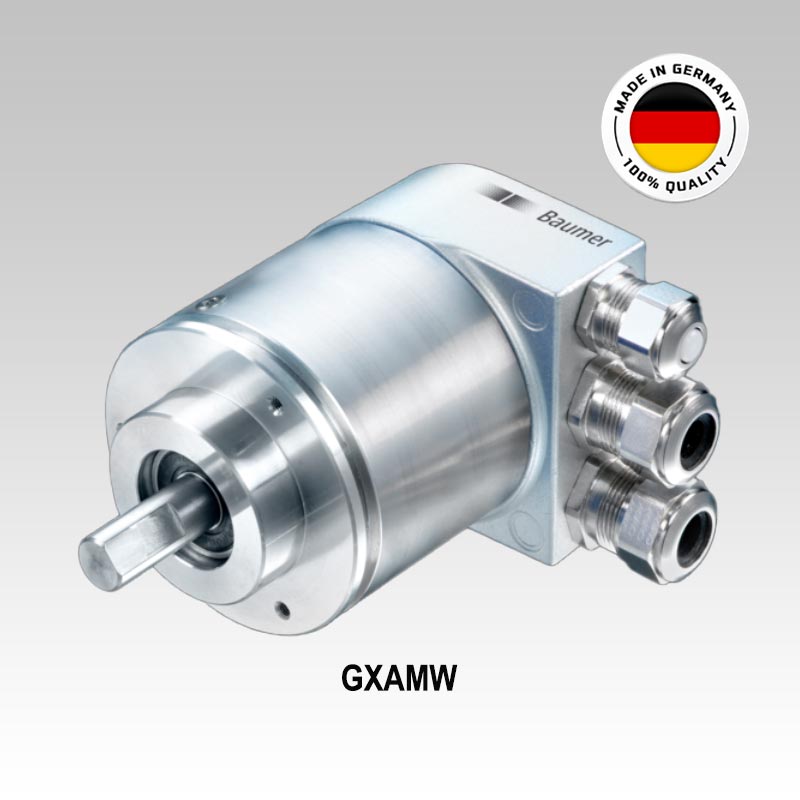

SingleTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: EtherCAT; Absolute Resolution: 13-Bit ST; Without Incremental Output; Connection: Bus Cover, Connector Radial M12; IP 65

Manufacturer: Baumer IVO
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn Absolute Encoder
  • Body Size Dia. 58mm
  • Optical sensing method
  • Maximum resistance against magnetic fields

Optional

  • Incremental Outputs and Stainless Steel design
  • Interface: CANopen®/DeviceNet/EtherNet-IP/SAEJ1939/PROFINET/Profibus-DPV0/POWERLINK/SSI
  • Solid Shaft with Synchro Flange and Shaft Dia. 6 mm
  • Protection: IP 54
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Absolute ST
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -25 °C to +85 °C
Protection : IP 65
Approval : UL approval / E63076
Weight : 0.65 KG
Special Notes

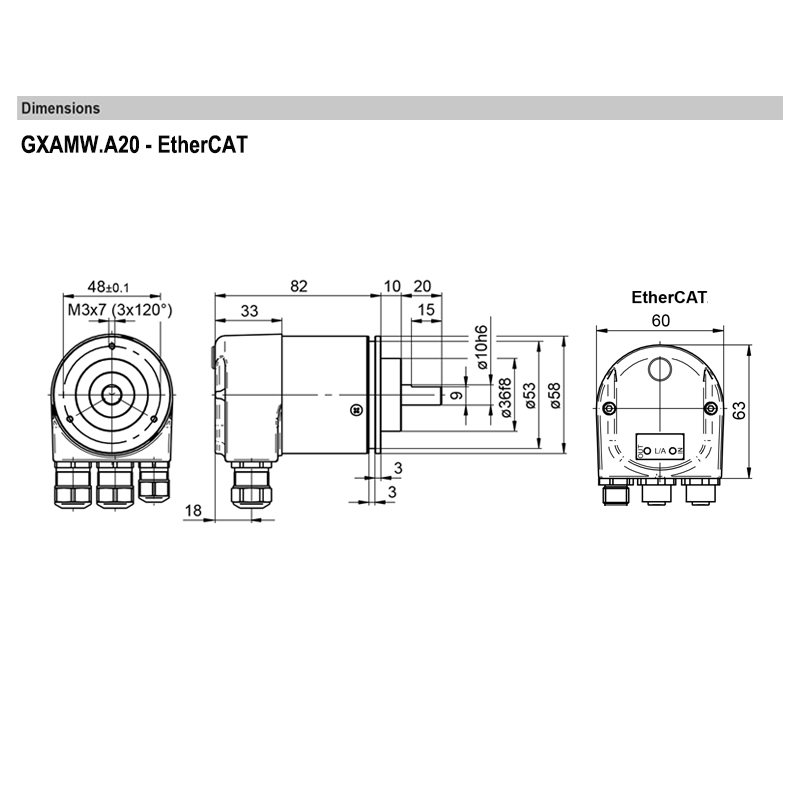

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
