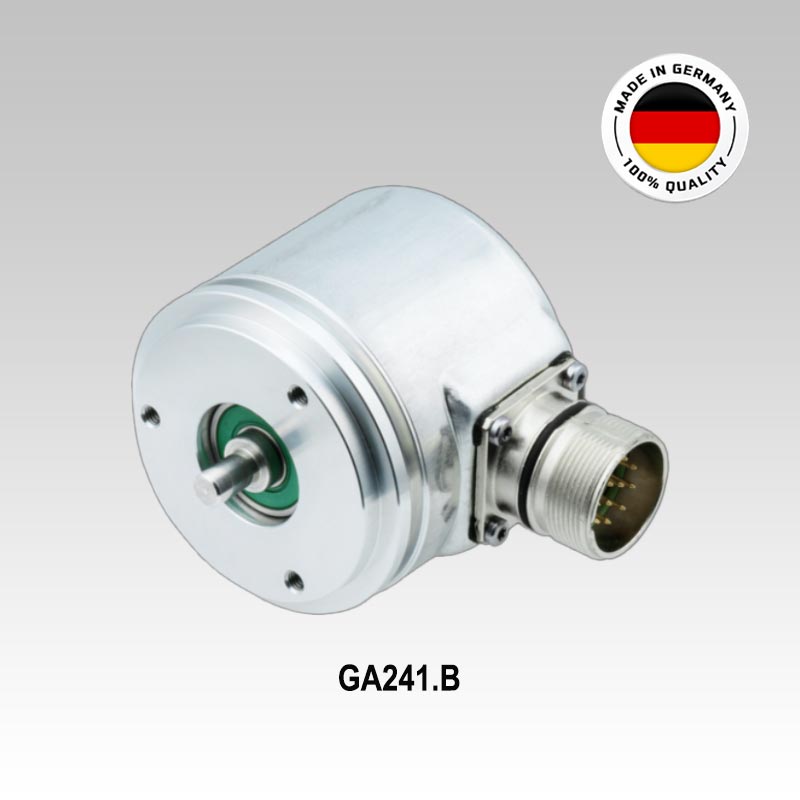

GA241.B30A105

SingleTurn Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Gray Code; Absolute Resolution: 13-Bit ST; Without Incremental Output; Connection: Flange Connector-Radial, M23, 12-Pin Male; IP 65

Manufacturer: Baumer IVO
Country of Origin : Germany
Technical Datasheet:
PDF-Icon GA241.B30A105
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn SSI Absolute Encoder
  • Body Size Dia. 58mm
  • Optical sensing method

Optional

  • Corrosion protection for Offshore applications
  • Protection Class: IP 54
  • 5 Vdc/Binary Code 13-Bit; 5 Vdc/ Gray Code 14-Bit
  • 10-30 Vdc/Binary Code 13/14-Bit; 10-30 Vdc/Gray Code 12/14-Bit
  • Connector M23, 12-Pin, Axial / Radial
  • Prewired Cable 1-M, Radial/Axial; Connector M12, 8-Pin Axial/Radial
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Absolute ST
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Flange Connector Radial - M23 12-Pin
Operating Temperature : From -25 °C to +85 °C
Protection : IP 65
Approval : UL approval / E63076
Weight : 0.25 KG
Special Notes

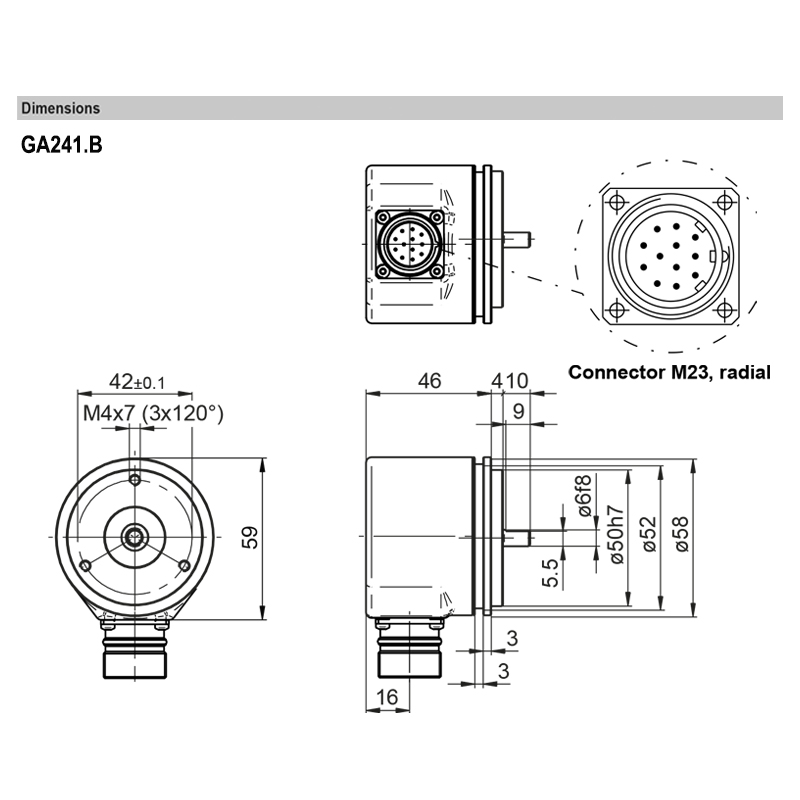

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
