EAM360-SWA.5B4G.13000.A

EAM360-SWA.5B4G.13000.A

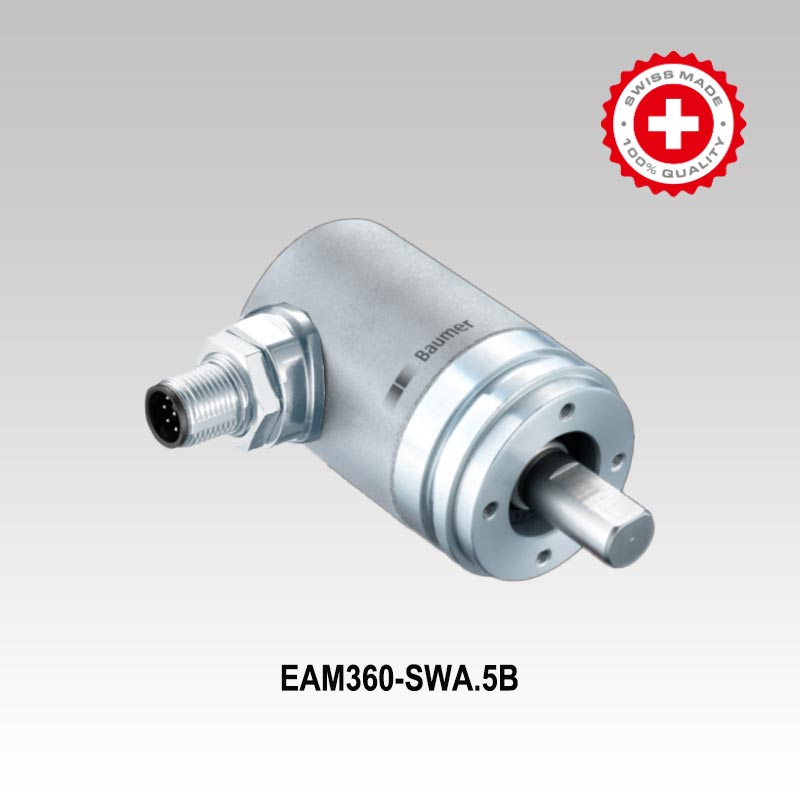

SingleTurn MAGRES Magnetic Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 10h6 x L:16mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Gray; Absolute Resolution: 13-Bit ST; Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 65

Manufacturer: Baumer

Country of Origin : Germany

Technical Datasheet:

EAM360-SWA.5B4G.13000.A

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

SingleTurn Magnetic Absolute Encoder
Body Size Dia. 36mm
Synchro Flange, Solid Shaft Dia. 10mm x 16 mm Length
Precise Magnetic sensing
Absolute Resolution: 13-Bit SingleTurn
Angular accuracy up to ±0.15°
SSI Gray
Clock frequency up to 2 MHz
High protection up to IP 65
High resistance to shock and vibrations

Optional

Protection against corrosion CX (C5-M)
Protection Class: IP 67
SSI Binary Interface
Flange Socket Radial, M12, 12-pin; 2-M prewired Radial Cable
Absolute Resolution: ST 10/12/14-Bit; MT 12/13/16/18-Bit
Incremental Output: 1024/2048/4096 ppr TTL (RS422) 4-Channels

Technical Data

Manufacturer : Baumer

Shaft Type : Solid Shaft

Shaft (S)/Bore (B) Dia. : S: 10 mm

Mounting Type : Synchro Flange

Encoder Type : Absolute ST

Sensing Method : Magnetic

Supply Voltage : 4.5 to 30 Vdc

Connection Type : Flange Connector Radial - M12 8-Pin

Operating Temperature : From -40 °C to +85 °C

Protection : IP 65

Approval : CE

Weight : 0.17 KG

Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
