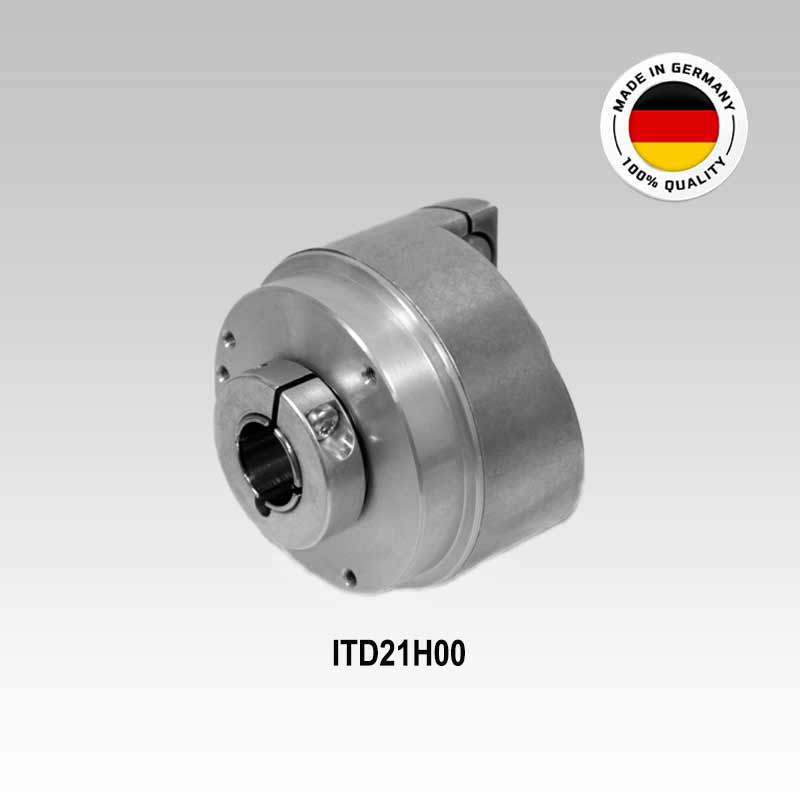

ITD21H00-512-H-NI-S21SG8-E14-IP65

Through Hollow Shaft Incremental Encoder, Body Dia. 58mm, Bore ø14 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull; 6-Channels; 512 ppr; IP 65; Connection: Board Connector Type 21, Pin Contacts, Straight, 8-Pin

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Technical Datasheet:
PDF-Icon ITD21H00-512-H-NI-S21SG8-E14-IP65
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Body Size Dia. 58mm
  • Precise optical sensing
  • Output Signal Level HTL/Push-Pull
  • Through Hollow Shaft, Bore Dia. 14mm
  • Connection: Board Connector Type 21, Pin Contacts, Straight, 8-Pin
  • Protection IP 65 (Standard Version)
  • Detachable Cable - Tangential outlet
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 14 mm
Mounting Type : Kit 021
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : HTL
PPR : 512 ppr
Supply Voltage : 8 to 30 Vdc
Connection Type : Board Connector Type 21, Pin Contacts, Straight, 8-Pin
Operating Temperature : From -30 °C to +100 °C
Protection : IP 65
Weight : 0.15 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
