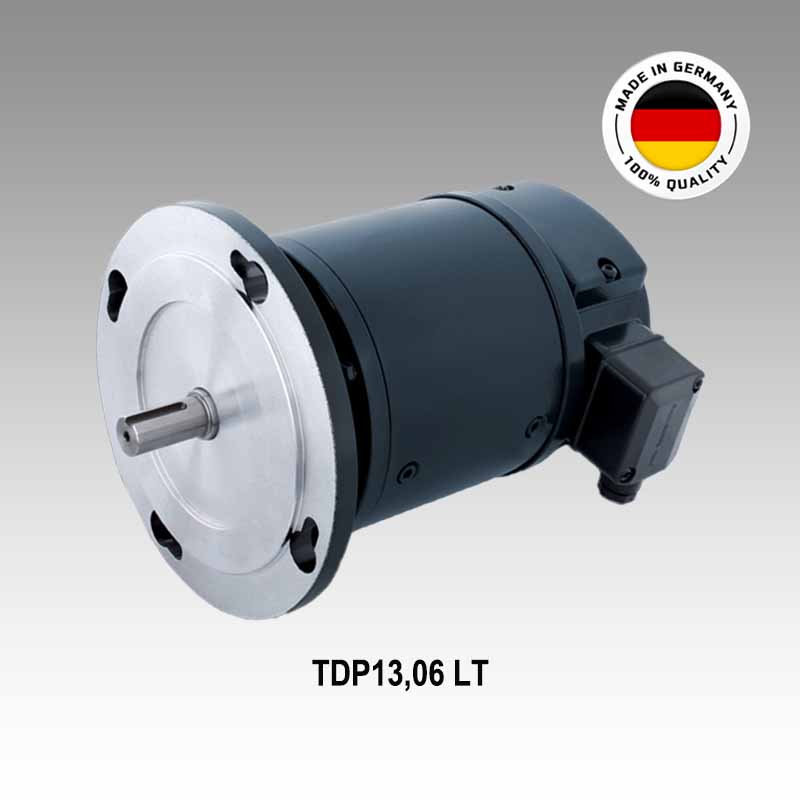

HeavyDuty LongLife DC Tachogenerator with B5km/B14km Flange mounting (Dia. 165mm; PCD: 143mm) and Solid Shaft (Main Shaft: AS15,875mmx32mm; 2nd Rear Shaft: BS15,875mmx17mm); with own bearings; Uo: 100Vdc/1000rpm; IP 55
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Spare Original Carbon Brush Set for TDP13/GMP1,0 Tachogenerators, Grade: H7/S7, Size: 5x3.5x14mm, M-Nr. 11078214
Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)
Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)

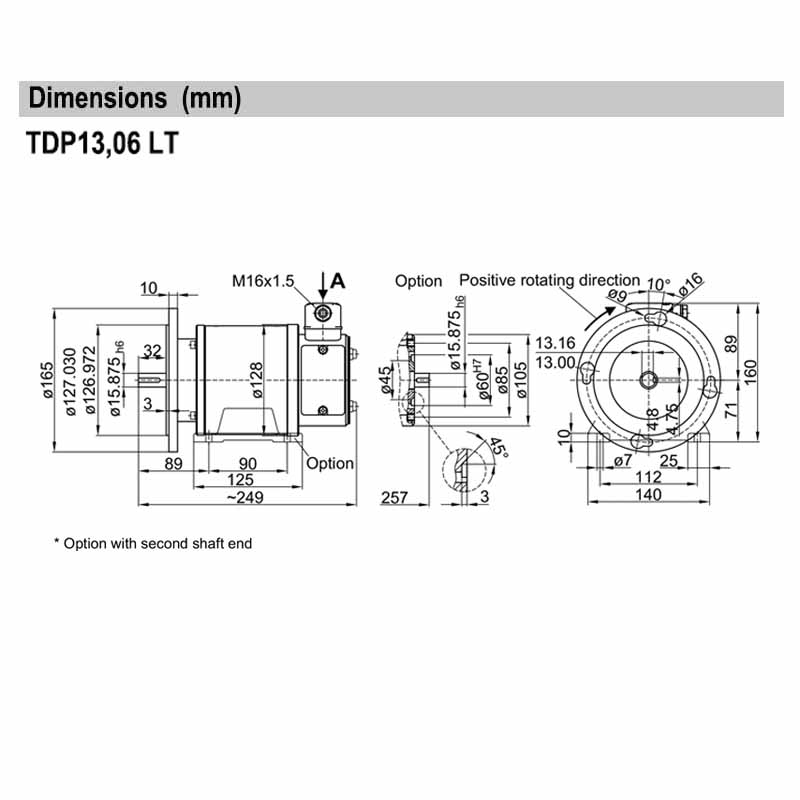

TDP13,06LT-6 - 11055548
