OG8DN400CI - 11116894

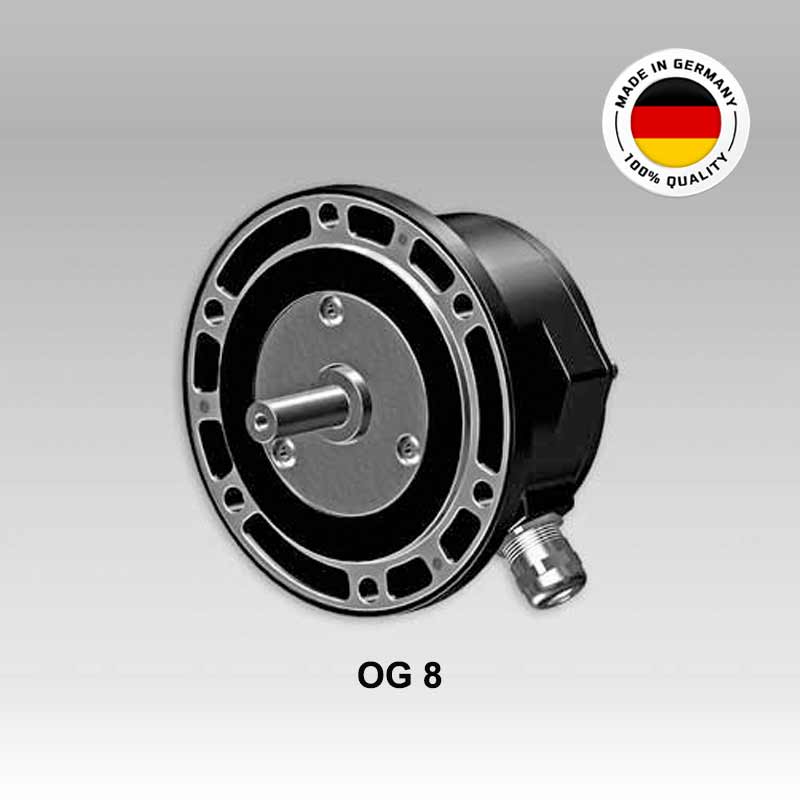

HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 26 Vdc; Output Signals: HTL-C with Inverted Signals (6-Channels); 400 ppr; Connecting Terminal Cover with Radial Cable Gland exit; IP 54

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust Aluminium Housing
  • Optical sensing method

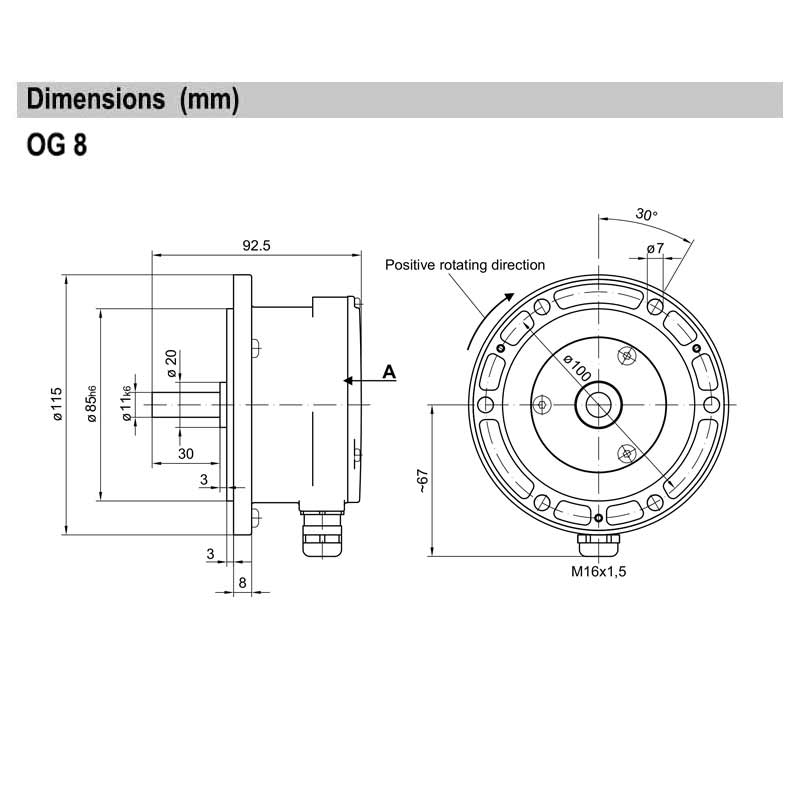

  • B10 Euro Flange mounting (Flange Dia. 115mm - PCD 100mm)
  • Solid Shaft Dia. 11 mm (11k6X30)
  • Operating Temperature -30 °C to +85 °C
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 11 mm
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Encoder Type : Incremental
Output Signal : HTL-C
PPR : 400 ppr
Supply Voltage : 9 to 26 Vdc
Connection Type : Connecting Terminal
Operating Temperature : From -30 °C to +85 °C
Protection : IP 54
Approval : CE, UL Approval / E256710
Weight : 0.7 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
