HOG9D1024I-16H7

Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (4-Channels: K1, K2, K1', K2'); 1024 ppr; Connection: Flange Connector M23, 12-Pin, Radial; IP 56

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust housing
  • Hybrid bearing for extended service life
  • High shaft load up to 400 N axial, 500 N radial
  • Shock resistant up to 275 g, 6ms
  • Flange Connector M23, 12-Pin, Male, CW, Radial

Optional

  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC or 9 to 30 Vdc - Output Stage TTL with inverted signals
  • Bore Dia. Blind Hollow Shaft: 12mm-12H7; 15mm; Through Hollow shaft 14mm; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 300, 500, 512, 1000, 1024, 1200, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R57
Encoder Type : Incremental
Output Signal : HTL
PPR : 1024 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Flange Connector Radial, M23 12-pin, Male Contacts, CW
Operating Temperature : From -30 °C to +100 °C
Protection : IP 56
Approval : CE, UL Approval / E217823
Weight : 0.7 KG
Special Notes

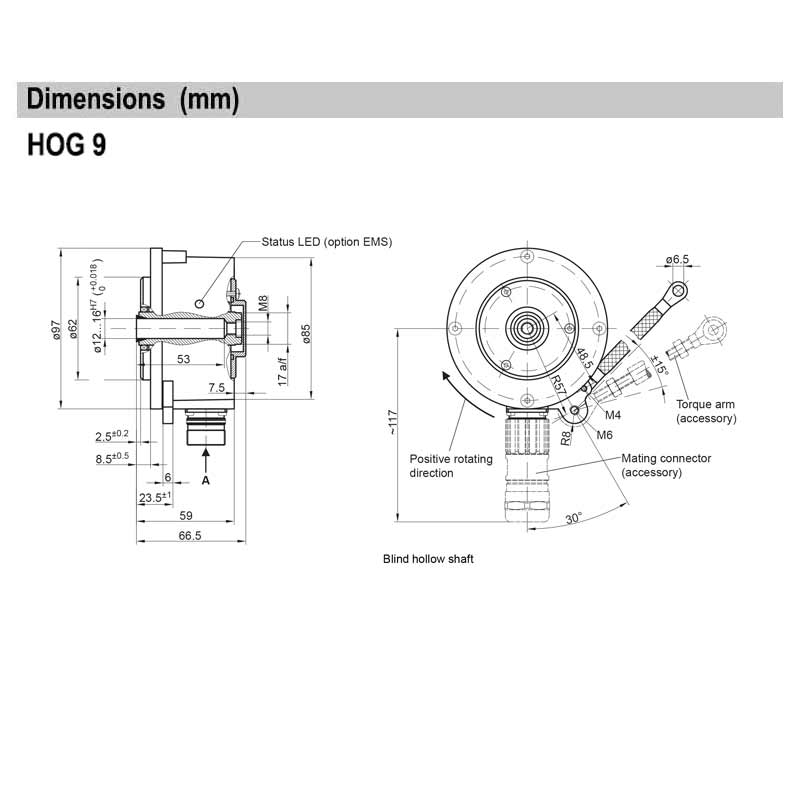

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
