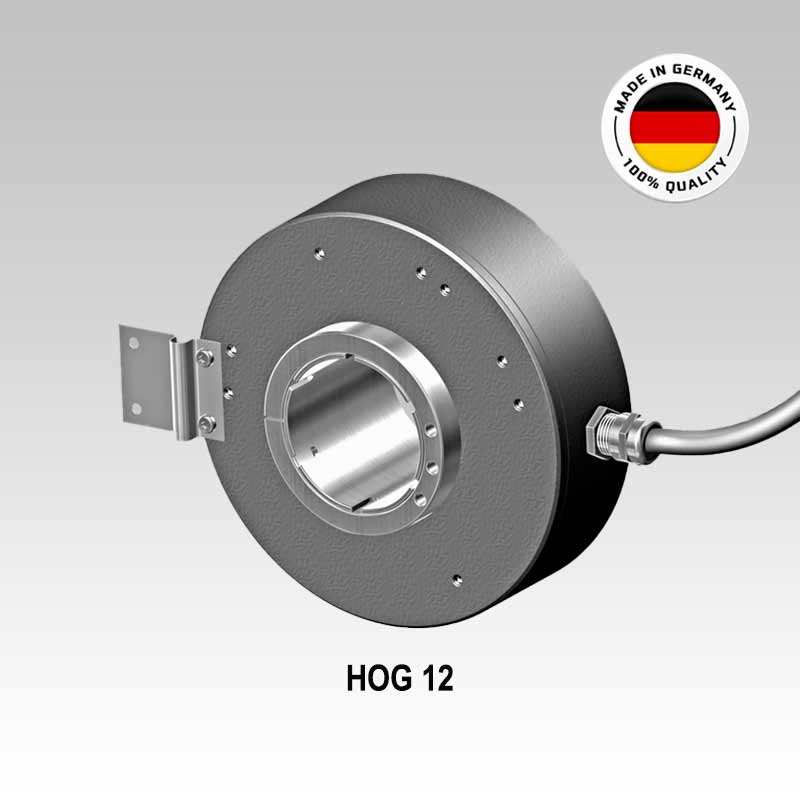

HOG12DN1024CI-40H7

Through Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 40mm (40H7x53mm); Supply Voltage: 9 to 26 Vdc; Output Signals: HTL-C with Inverted Signals (6-Channels); 1024 ppr; Connection: 1-Meter prewired Cable - Radial outlet; IP 54

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon HOG12DN1024CI-40H7
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Through Hollow Shaft Bore Dia. 40mm
  • Optical Sensing method
  • Robust light-metal housing

Optional

  • Through Hollow Shaft Bore Dia. 30mm; 38mm; 45mm
  • 5 VDC/TTL; 9 to 26 Vdc/TTL with inverted signals
  • Bore Dia. 12mm - 12H7; 20mm; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 600, 1024, 1200
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 40 mm
Mounting Type : Torque Arm/Support Plate
Encoder Type : Incremental
Output Signal : HTL-C
PPR : 1024 ppr
Supply Voltage : 9 to 26 Vdc
Connection Type : 1-M prewired Cable, Radial
Operating Temperature : From -30 °C to +85 °C
Protection : IP 54
Approval : CE, UL Approval / E217823
Weight : 1 KG
Special Notes

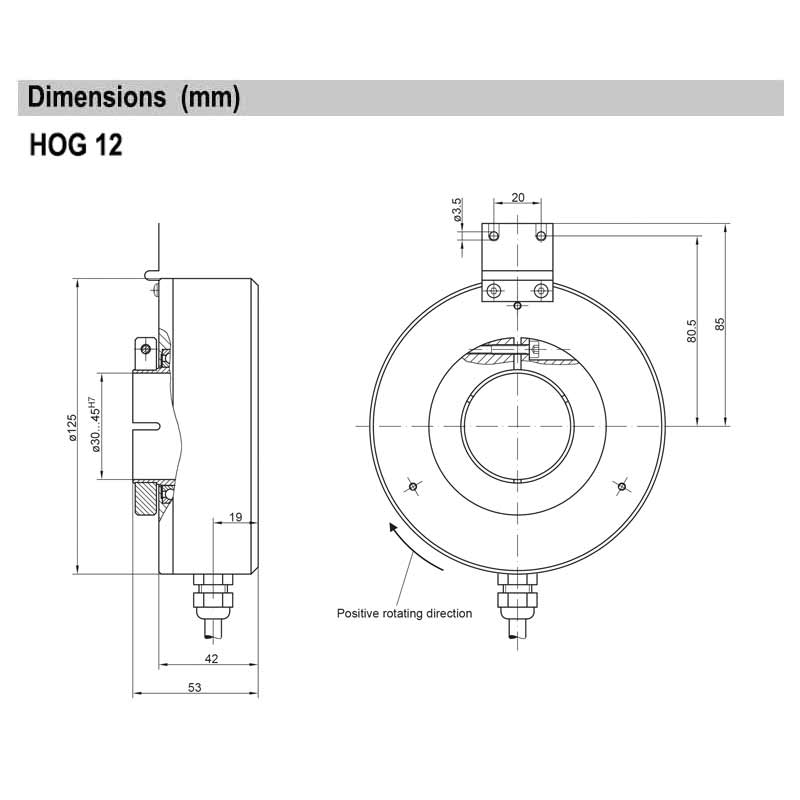

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
