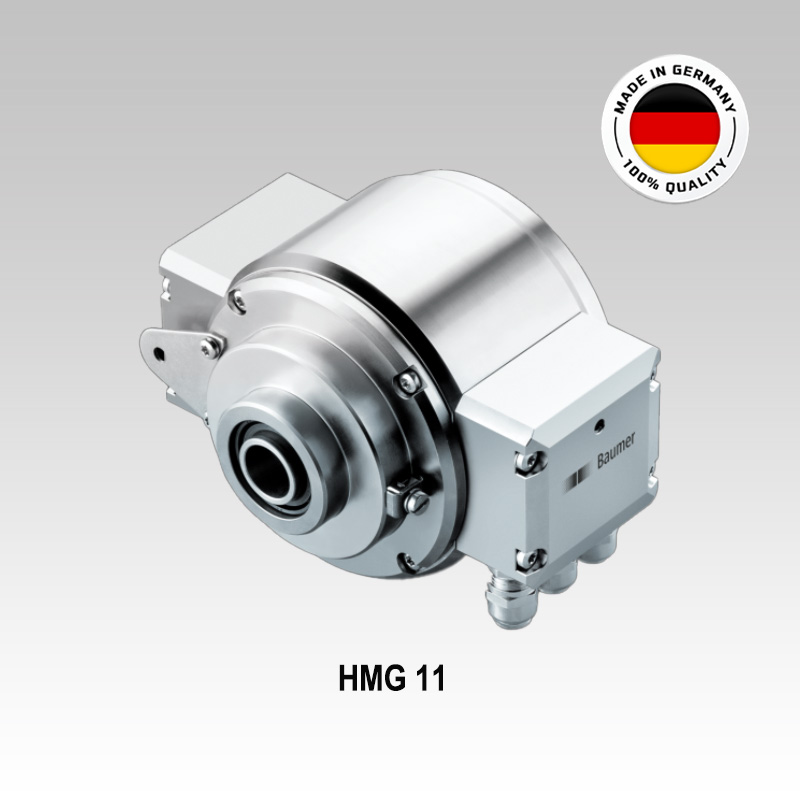

HMG11P29Z0 16H7

Blind Hollow Shaft SingleTurn/MultiTurn HeavyDuty Absolute Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 13-Bit SingleTurn + 16-Bit MultiTurn; Without Incremental Output; Connection: With Bus Cover Connection; IP 67

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon HMG11P29Z0 16H7
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Blind Hollow Shaft HeavyDuty Absolute Encoder
  • Optical sensing method
  • 13-Bit SingleTurn + 16-Bit MultiTurn
  • MultiTurn sensing with microGen technologie, without gear or battery
  • Special protection against corrosion

Optional

  • Additional Incremental Output TTL / HTL - 1024 / 2048 ppr
  • Interface: SSI; CANopen; DeviceNet; PROFINET; 2 x SSI; 2 x Profibus; 2 x CANopen®; 2 x DeviceNet
  • Interface: Profibus+SSI; CANopen®+SSI; DeviceNet+SSI; CANopen®+Profibus; Devicenet+Profibus; DeviceNet+CANopen®
  • Absolute Resolution: 13-Bit ST; 13-Bit ST + 12-Bit MT
  • Hollow Shaft Bore Dia.: 19H7; 20H7; 17K Conical 1:10
  • Available with Redundant Absolute Signals
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Flange Dia.: 122mm
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 9 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -20 °C to +85 °C
Protection : IP 67
Approval : CE, UL Approval / E256710
Weight : 3.5 KG
Special Notes

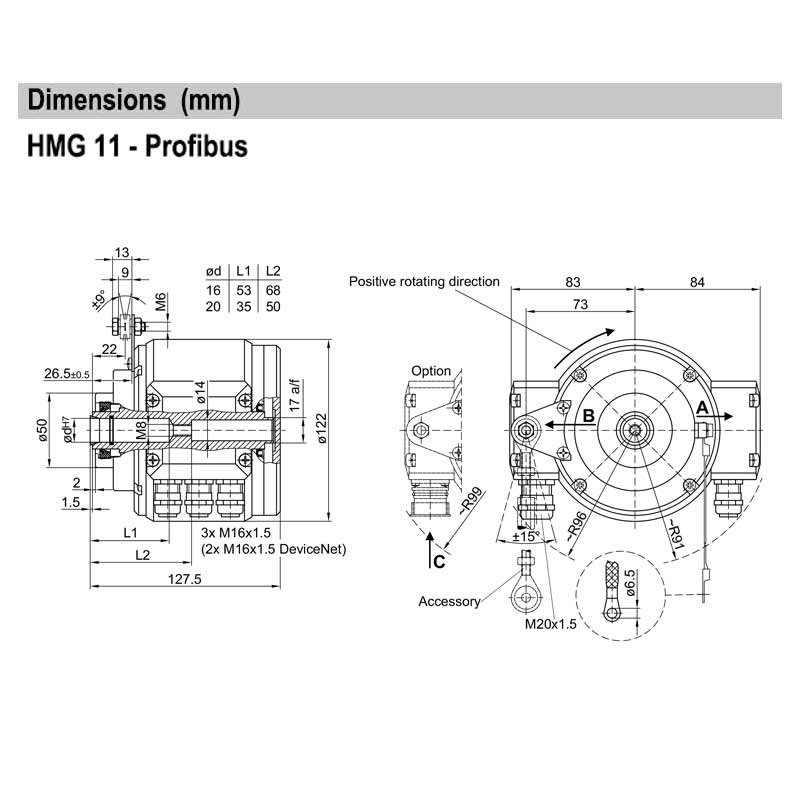

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
