SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: RS485; Absolute Resolution: 13-Bit ST+12-Bit MT; Without Incremental Output; Connection: 1-Meter prewired Cable, Axial outlet; IP 65
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: RS485; Absolute Resolution: 13-Bit ST+12-Bit MT; Without Incremental Output; Connection: Flange Connector-Radial, M23, 12-Pin Male; IP 65
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: RS485, SLIN Protocol 19.2 kBaud; Absolute Resolution: 13-Bit ST+12-Bit MT; Without Incremental Output; Connection: 1-Meter prewired Cable, Radial outlet; IP 65

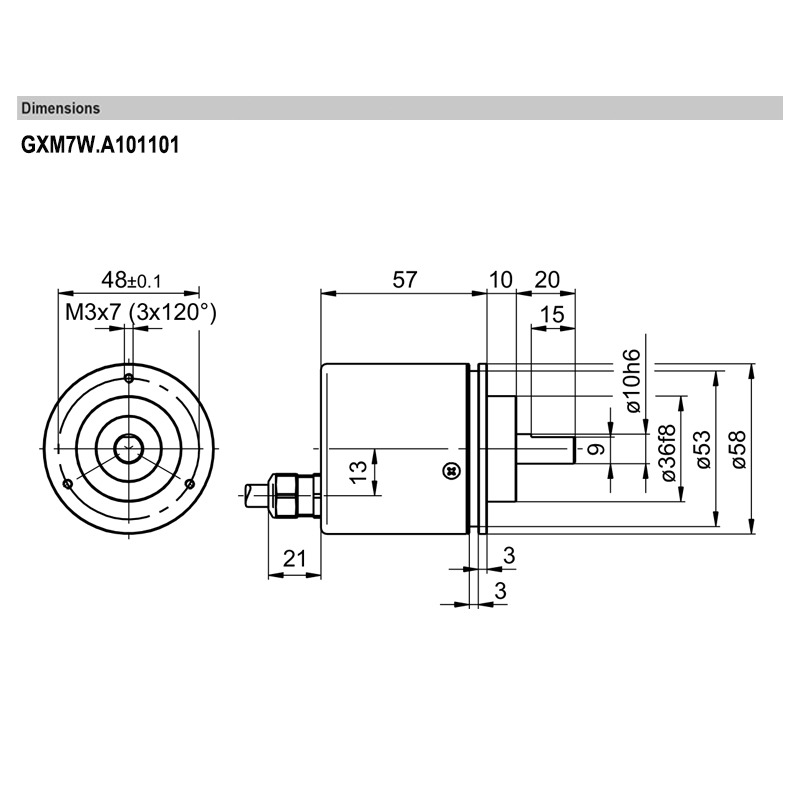

GXM7W.A101101
