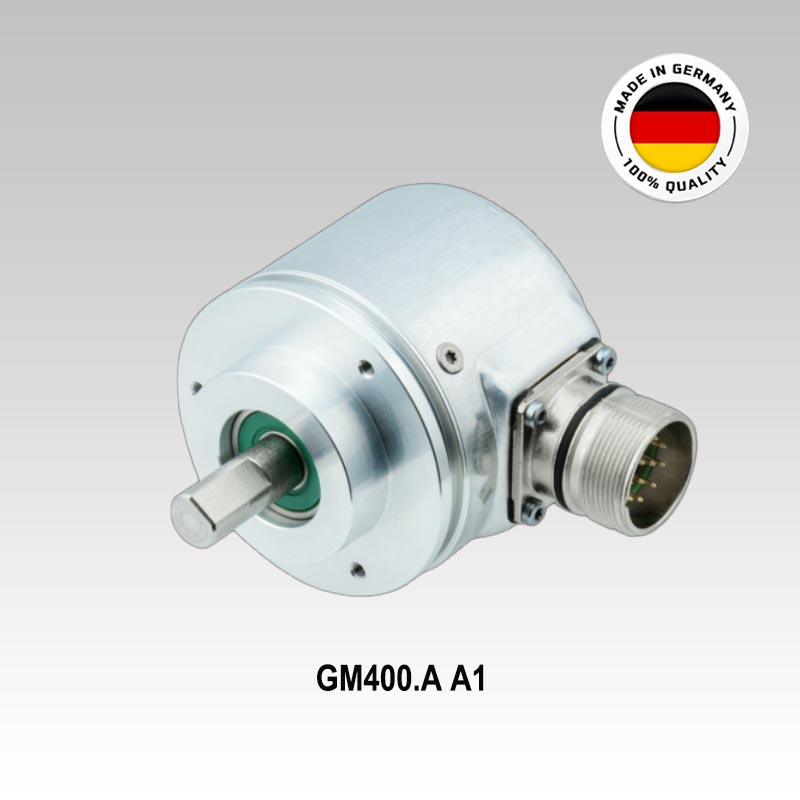

GM400.A10A102

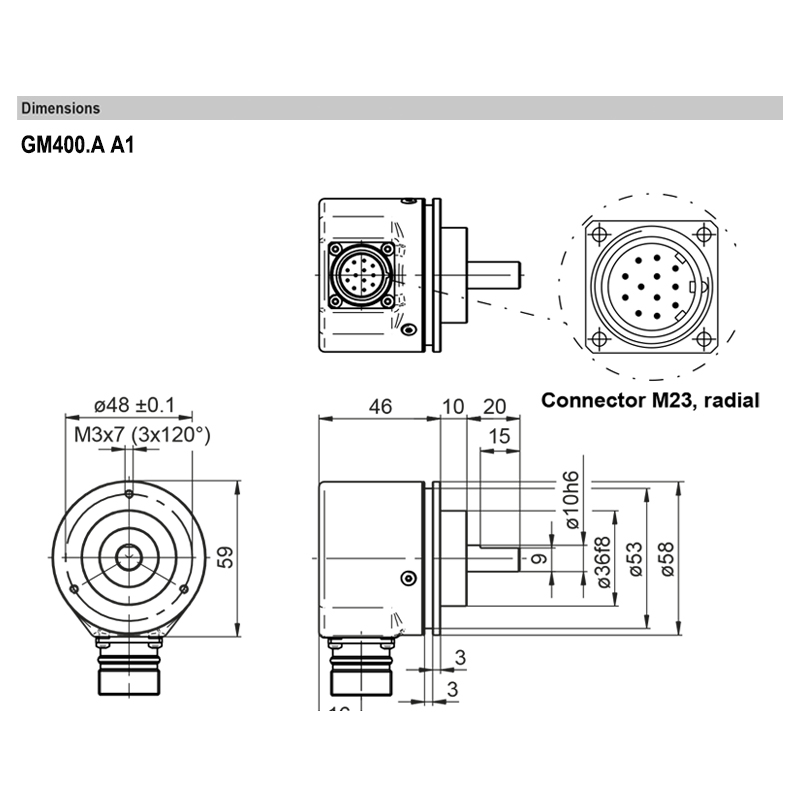

SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Gray Code 25-Bit; Absolute Resolution: 13-Bit ST+12-Bit MT; Without Incremental Output; Connection: Flange Connector-Radial, M23, 12-Pin Male; IP 65

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
PDF-Icon GM400.A10A102
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • ST / MT - SSI Absolute Encoder
  • Optical sensing method
  • Electronic setting of zero point
  • Counting direction input
  • Maximum resistant against magnetic fields
  • High protection up to IP 65

Optional

  • Stainless steel design
  • Corrosion protection for Offshore applications
  • Extended Operating Temperature Range up to -40 °C
  • Interface: SSI Binary/Gray Code, 24/25/26/29-Bit
  • Incremental Output: 512/1024/2048 PPR - Push-Pull
  • Incremental Output: 512/1024/2048 PPR - TTL/RS422
  • Incremental Output: 512/1024/2048 PPR - SinCos
  • Connection: Connector M23 12-Pin Axial/Radial
  • Connection: Prewired Cable 1-Meter Axial/Radial
  • Connection: Connector M12 8-Pin Axial/Radial
  • Protection: IP 54
Technical Data
Manufacturer : Baumer
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Flange Connector Radial - M23 12-Pin
Operating Temperature : From -25 °C to +85 °C
Protection : IP 65
Approval : UL approval / E63076
Weight : 0.4 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
