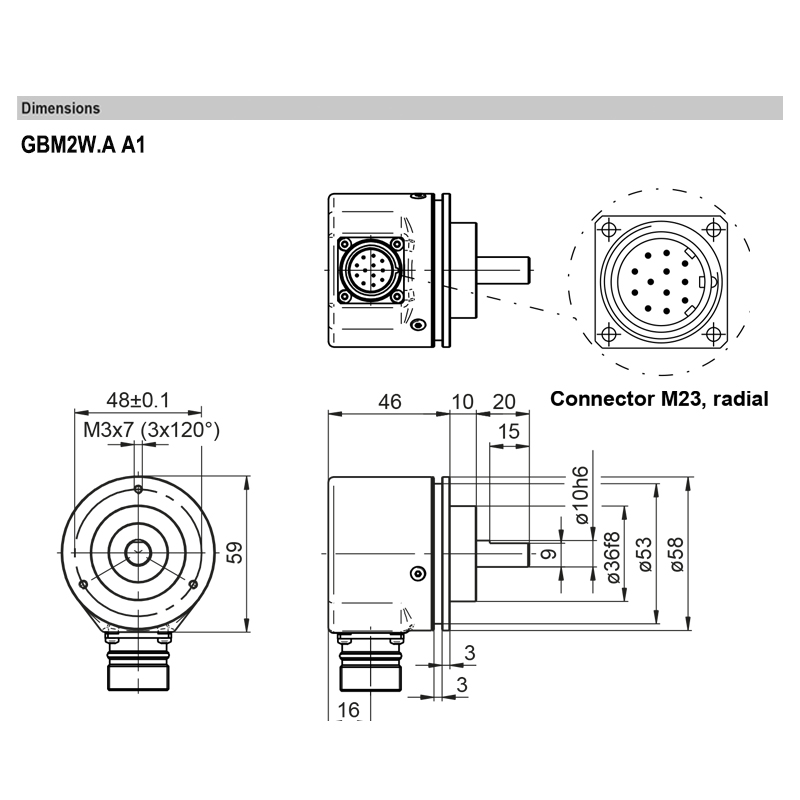

SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Gray Code 30-Bit; Absolute Resolution: 18-Bit ST/12-Bit MT; Without Incremental Output; Connection: Flange Connector-Radial, M23, 12-Pin Male; IP 65
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Binary Code 30-Bit; Absolute Resolution: 18-Bit ST+12-Bit MT; Without Incremental Output; Connection: 1-Meter prewired Cable, Radial outlet; IP 65
GBM2W.A10A102
