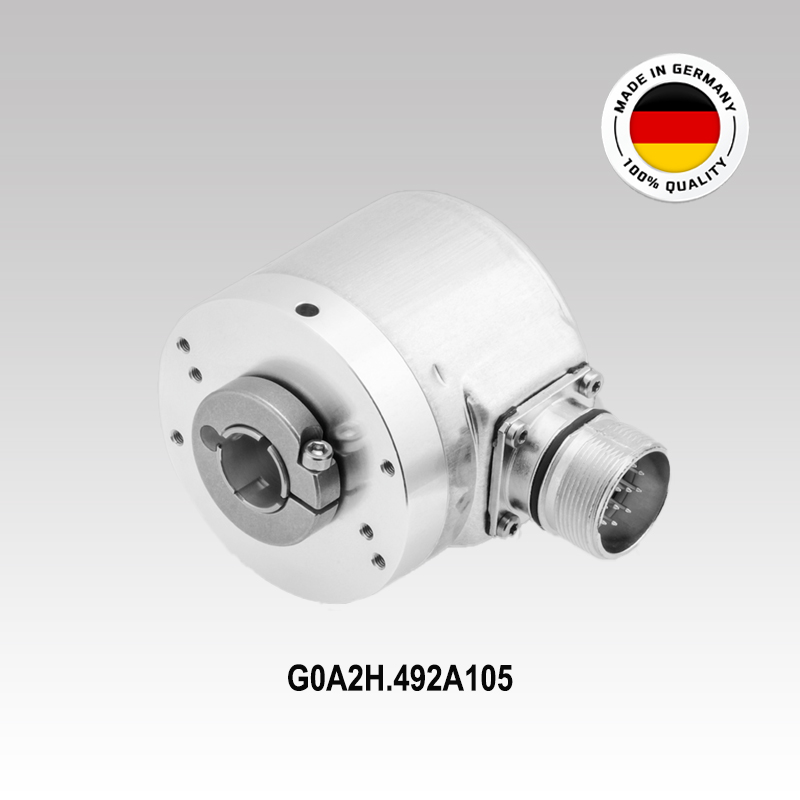

G0A2H.492A105

Through Hollow Shaft SingleTurn SSI Absolute Encoder; Without Stator Coupling; Bore Dia. 14mm, Clamping Ring on A-Side, without Pin; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Output Signal: Binary Code; Absolute Resolution: 14-Bit ST; Without Incremental Output; Connection: Flange Connector Radial M23, 12-Pin; IP 54

Manufacturer: Baumer IVO
Country of Origin : Germany
Technical Datasheet:
PDF-Icon G0A2H.492A105
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn SSI Binary Code Absolute Encoder
  • Optical sensing method
  • Body Size Dia. 58mm
  • Through Hollow Shaft, Bore Dia. 14mm, Clamping Ring on A-Side
  • Absolute Resolution: 14-Bit SingleTurn
  • High reliability by self-diagnostics
  • Protection IP 54 (Standard Version)
  • Counting direction input

Optional

  • Corrosion protection for Offshore applications
  • Available with additional incremental output
  • Bore Dia.: 10 mm, 12 mm, 14 mm, with/without Pin
  • Protection Class: IP 65
  • Absolute Resolution: ST 13-Bit, 14-Bit; Gray/Binary Code
  • Connection: Cable 1-Meter Radial outlet
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 14 mm
Mounting Type : Without Stator Coupling
Encoder Type : Absolute ST
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Flange Connector Radial - M23 12-Pin
Operating Temperature : From -25 °C to +85 °C
Protection : IP 54
Approval : UL approval / E63076
Weight : 0.4 KG
Special Notes

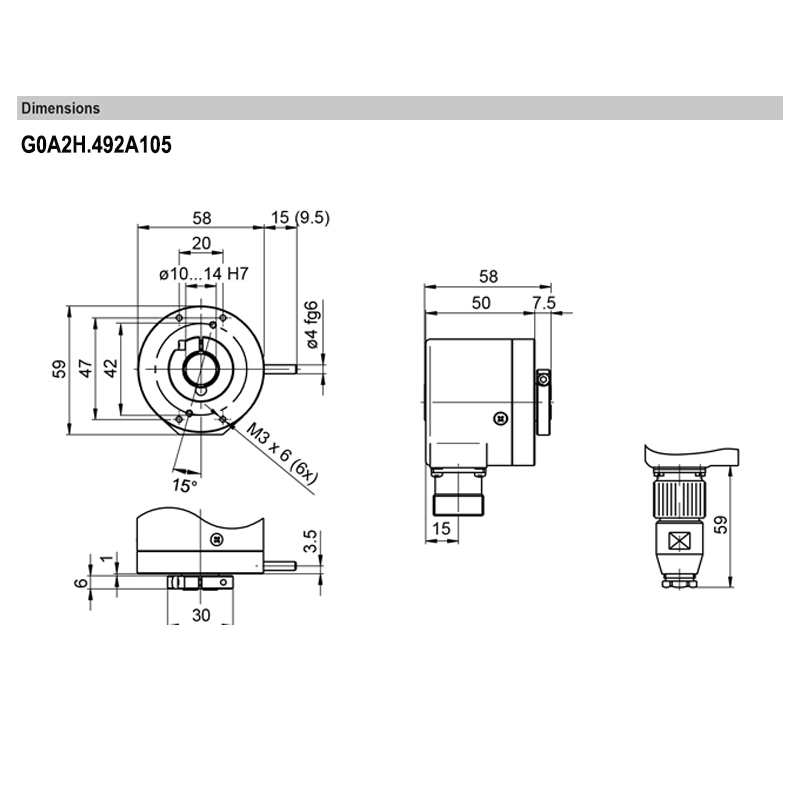

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
