EIL580P-TT10.5BF.01024.B - 11135261

Programmable Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø10 mm, Clamping Ring on A-side; Supply Voltage: 4.75 to 30 VDC, TTL/RS422 compatible (Vout=5V) or HTL/Push-Pull, 6 channel; Programmable from 1 to 65536 ppr; IP 65; Flange Socket Radial, M12, 8-pin, Male Contacts, CCW

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EIL580P-TT10.5BF.01024.B - 11135261
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Body Size Dia. 58mm; Bore Dia. 10mm, Clamping Ring on Side A
  • Precise optical sensing (interpolated)
  • Output Signal Level programmable TTL or HTL
  • Through Hollow Shaft, Stator Coupling Dia. 63mm
  • Connection: Flange Connector M12, 8-Pin, Radial, Male, ccw
  • 1 to 65536 PPR Programmable
  • Protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Assorted mounting Flange: with/without Stator Coupling; Torque Pin
  • Assorted Bore Dia.: 8, 10, 12, 14, 15mm; 3/8", 1/2"; Clamping Ring on B Side
  • Output stage TTL / 5VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial, Male ccw Connector; M12, 8-Pin, Radial, Male, ccw Connector; Radial/Axial/Tangential 2-Meters prewired Cable outlet
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 10 mm
Mounting Type : Stator Coupling ø63 mm
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : TTL/HTL (Prog.)
PPR : 1 to 65536 (Prog.) ppr
Supply Voltage : 4.75 to 30 VDC
Connection Type : Flange Socket Radial, M12 8-pin, Male, CCW
Operating Temperature : From -40 °C to +100 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

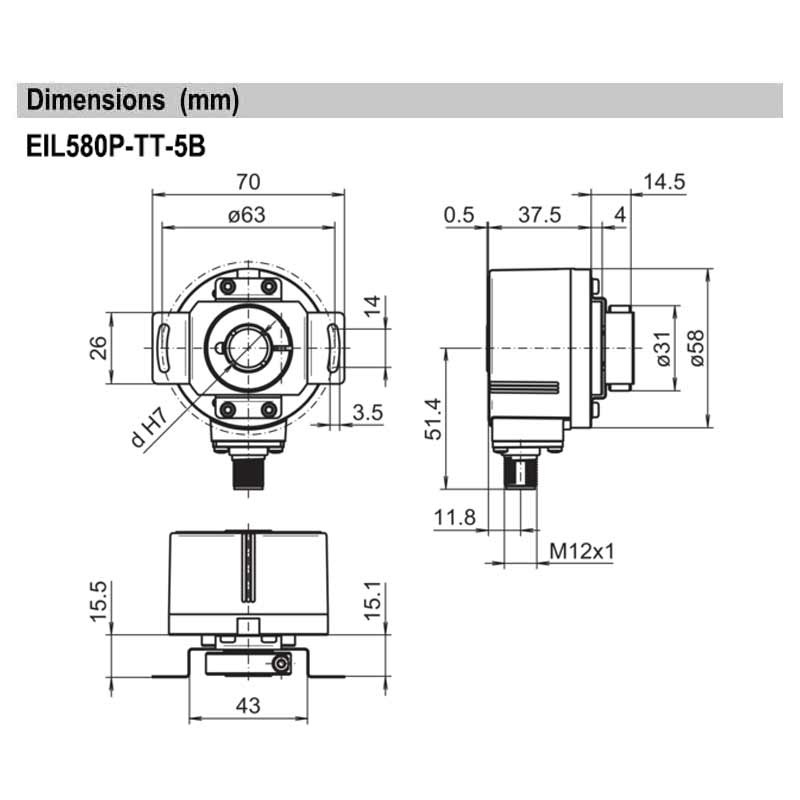

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
