EIL580P-SC10.5BF.01024.B

Programmable Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 VDC, TTL/RS422 compatible (Vout=5V) or HTL/Push-Pull, 6 channel; Programmable from 1 to 65536 ppr; IP 65; Flange Socket Radial, M12, 8-pin, Male Contacts, CCW

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Body Size Dia. 58mm; Shaft Dia. 10mm, Shaft Length: 20mm
  • Precise optical sensing (interpolated)
  • Output Signal Level Programmable (TTL or HTL)
  • Clamping Flange mounting
  • Connection Flange Socket Radial, M12, 8-pin, Male Contacts, CCW
  • High protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Output stage TTL /RS422; HTL/Push-Pull
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial, Male ccw Connector; 2-Meters prewired Radial/Axial/Tangential outlet shielded Cable
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : TTL/HTL (Prog.)
PPR : 1 to 65536 (Prog.) ppr
Supply Voltage : 4.75 to 30 VDC
Connection Type : Flange Socket Radial, M12 8-pin, Male, CCW
Operating Temperature : From -40 °C to +100 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

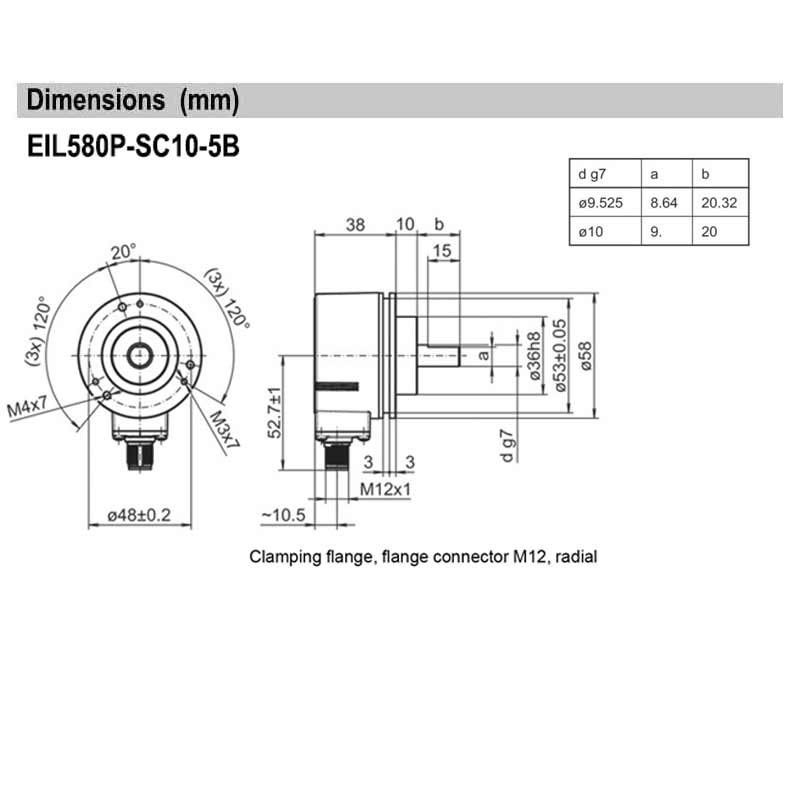

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
