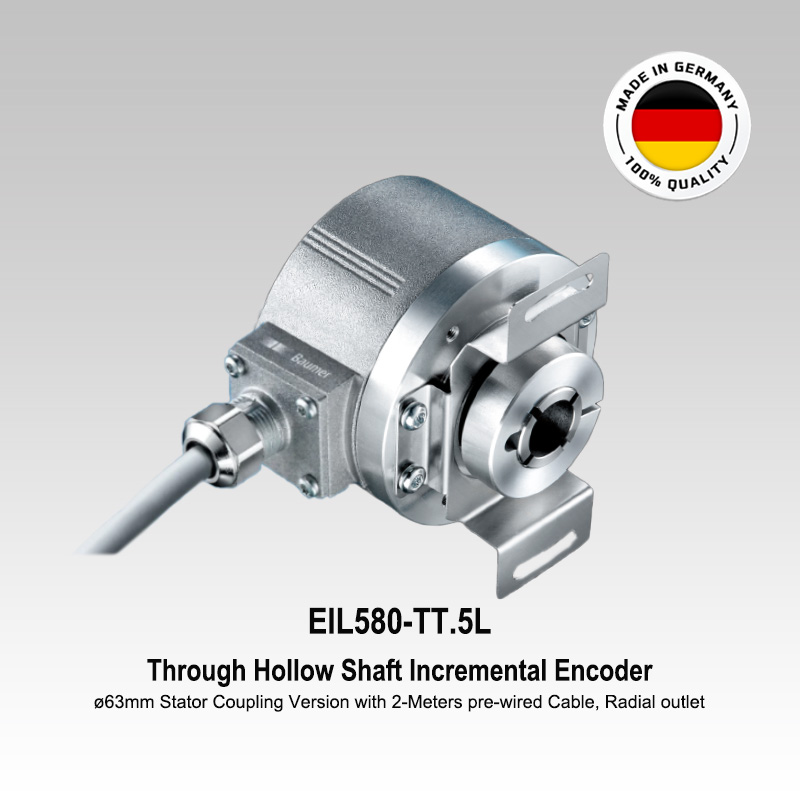

Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø15 mm, Clamping Ring on A-side; Supply Voltage: 5 Vdc; TTL/RS422 Compatible; 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø14 mm, Clamping Ring on A-side; Supply Voltage: 5 Vdc; TTL/RS422 Compatible; 6-Channels; 1024 ppr; IP 65; Flange Connector M23, 12-Pin, Radial, Male, ccw
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø14 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø15 mm, Clamping Ring on A-side; Supply Voltage: 5 Vdc; TTL/RS422 Compatible; 6-Channels; 1024 ppr; IP 65; Flange Connector M23, 12-Pin, Radial, Male, ccw
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø10 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø12 mm, Clamping Ring on B-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø12 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
EIL580-TT15.5LE.01024.A - 11141089
