EIL580-SC10.5LN.00600.A - 11139931

Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 600 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EIL580-SC10.5LN.00600.A - 11139931
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

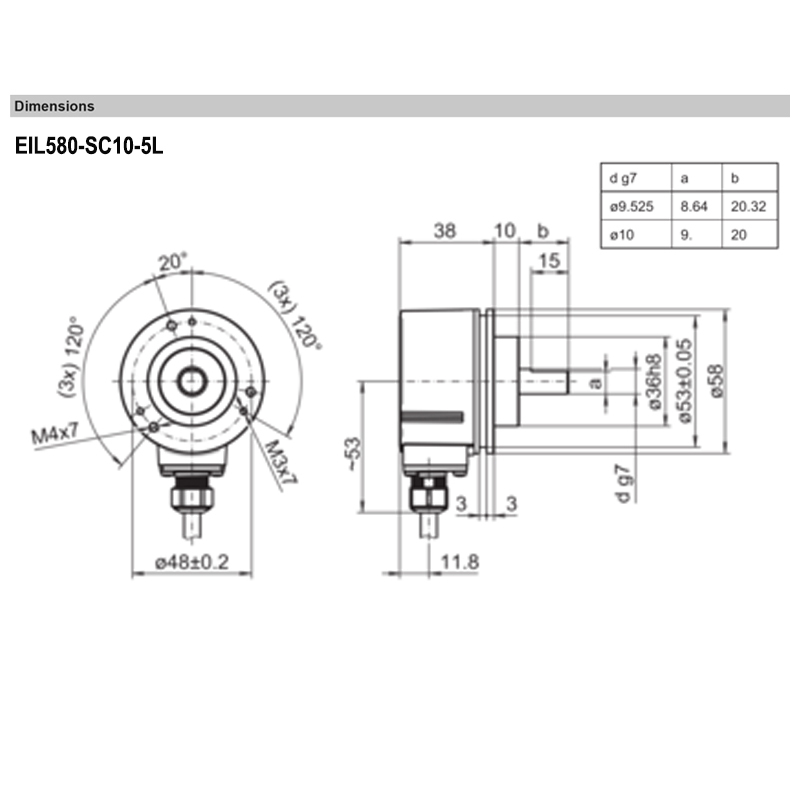

  • Body Size Dia. 58mm; Shaft Dia. 10mm, Shaft Length: 20mm
  • Precise optical sensing
  • Output Signal Level HTL
  • Clamping Flange mounting
  • Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
  • High protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Output stage TTL / 5VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Axial cable outlet; Tangential Cable outlet
  • Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : HTL
PPR : 600 ppr
Supply Voltage : 8 to 30 Vdc
Connection Type : 2-Mtrs PVC Shielded Cable, Radial Outlet
Operating Temperature : From -40 °C to +85 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
ACCESSORIES
K35
Part No: K35

Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request
K60
Part No: K60

Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request
K50
Part No: K50

Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request
