EAM580-KYC.7B4G.12000.A

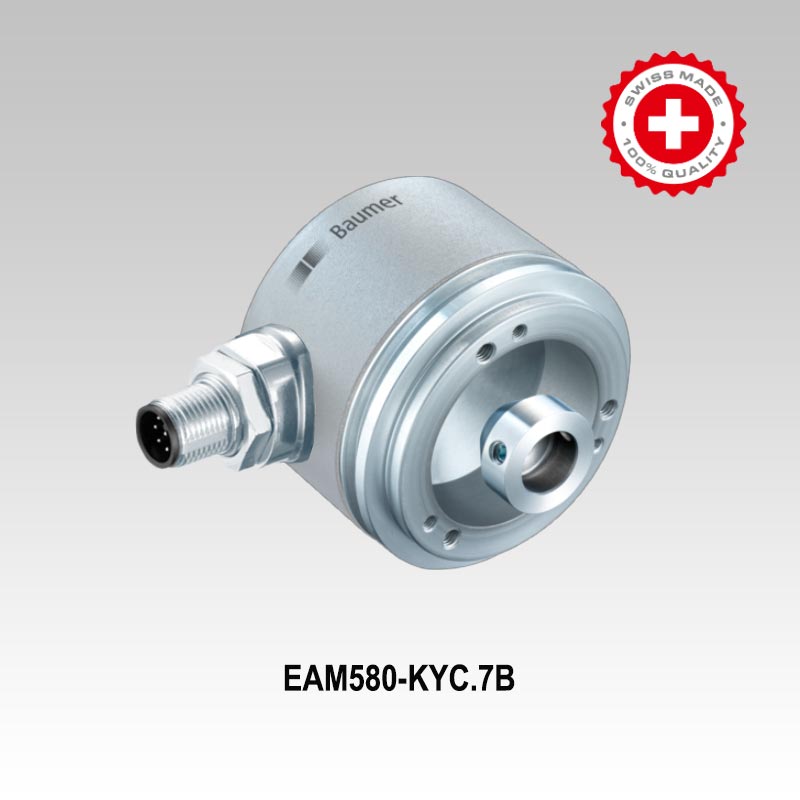

SingleTurn MAGRES Magnetic Absolute Encoder Kit; Synchro Flange mounting; Magnet Bore Dia. 12 mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Gray; Absolute Resolution: 12-Bit ST; Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 67

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EAM580-KYC.7B4G.12000.A
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn - SSI Magnetic Absolute Encoder Kit
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • Clock frequency up to 2 MHz
  • High resistance to shock and vibrations
  • High protection up to IP 67

Optional

  • Protection against corrosion CX (C5-M)
  • SSI Binary Interface
  • Magnet Holder/Bore Dia. 6 mm, 8 mm
  • Flange Socket Radial, M23 12-pin / M12 12-Pin; 2-M prewired Radial Cable
  • Absolute Resolution: ST 10/13/14-Bit; MT 12/13/16/18-Bit
  • Incremental Output: 1024/2048/4096 ppr TTL (RS422) 4-Channels
Technical Data
Manufacturer : Baumer
Shaft Type : Magnet Bore
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : Synchro Flange
Encoder Type : Absolute ST
Sensing Method : Magnetic
Supply Voltage : 4.5 to 30 Vdc
Connection Type : Flange Connector Radial - M12 8-Pin
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : CE
Weight : 0.25 KG
Special Notes

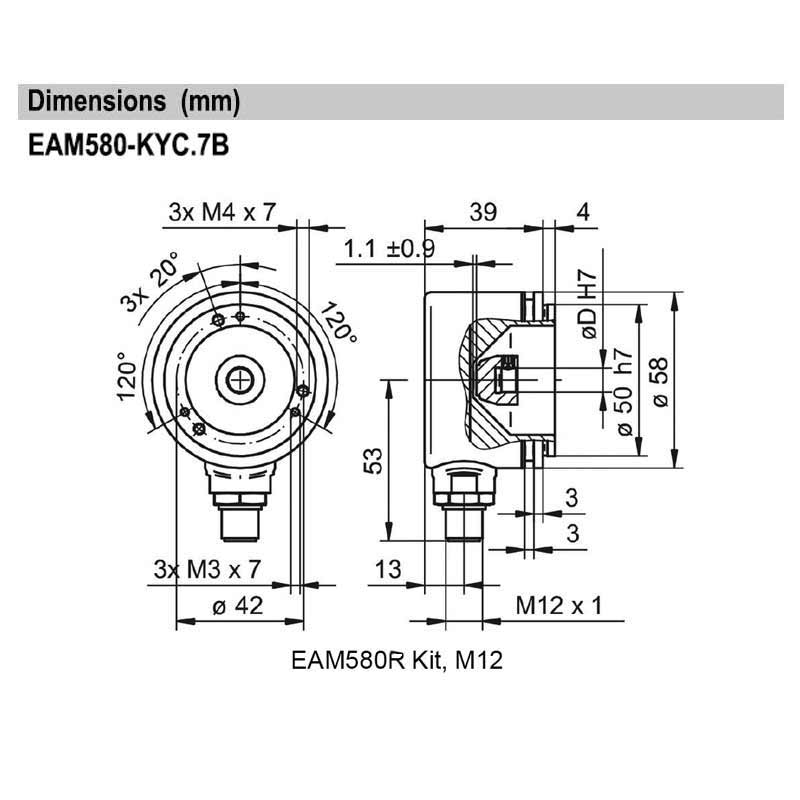

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
