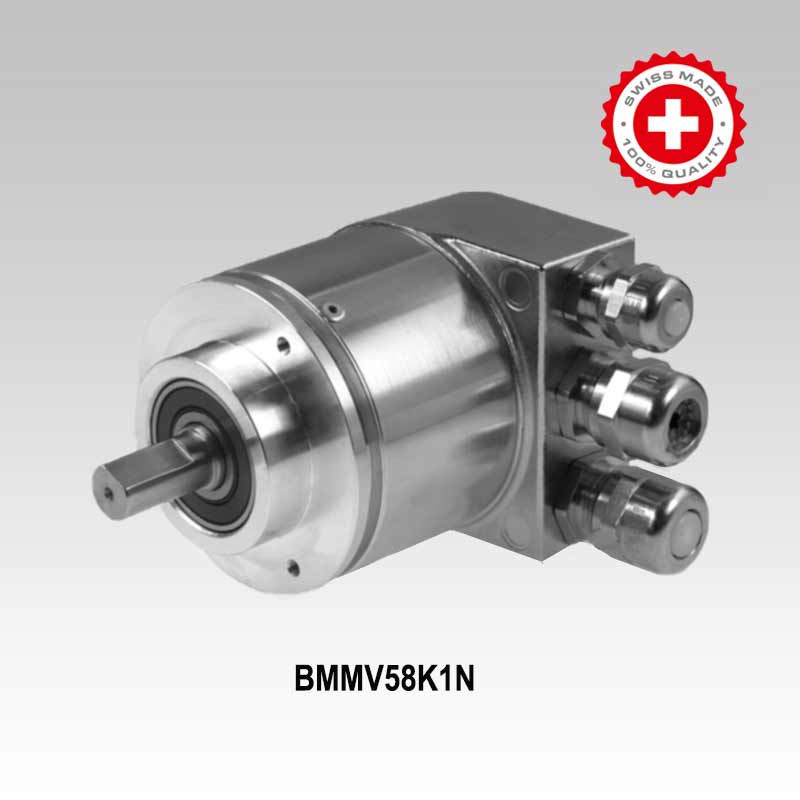

BMMV58K1N24P12/16N0D

SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 12-Bit ST/16-Bit MT; Connection: Encoder with Bus Cover and Cable Gland; IP 67

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Bearingless SingleTurn/MultiTurn Magnetic Absolute Encoder Kit with Bus Cover
  • Magnetic sensing method
  • Interface: Profibus-DPV0
  • High resistance to shock and vibrations
  • Resolution: 12-Bit ST/ 16-Bit MT
  • Protection IP 67

Optional

  • Interface: CANopen®/DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/PoE/POWERLINK
  • Resolution: 12-Bit ST / 18-Bit MT (only CANopen®)
  • Solid Shaft with Synchro Flange
  • Protection: IP 65
Technical Data
Manufacturer : Baumer
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Absolute ST+MT
Sensing Method : Magnetic
Supply Voltage : 10 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : UL approval / E217823
Weight : 0.48 KG
Special Notes

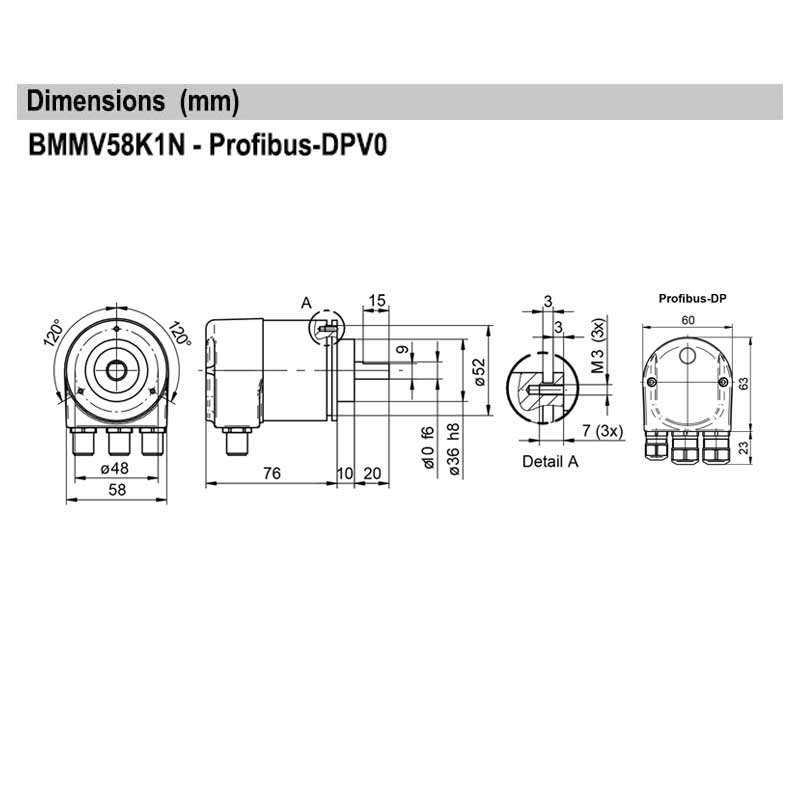

"Please refer above given PDF Data File for additional Product technical & dimensional information.
