172526.630mA
Siba Medium Blow (M) Miniature Ceramic Fuses: M 630mA, 250 Vac, Breaking Capacity: 1.5kA, Operating Class: M, Size: 5x25mm, with Indicator
172526.630mA
Product Salient Features:

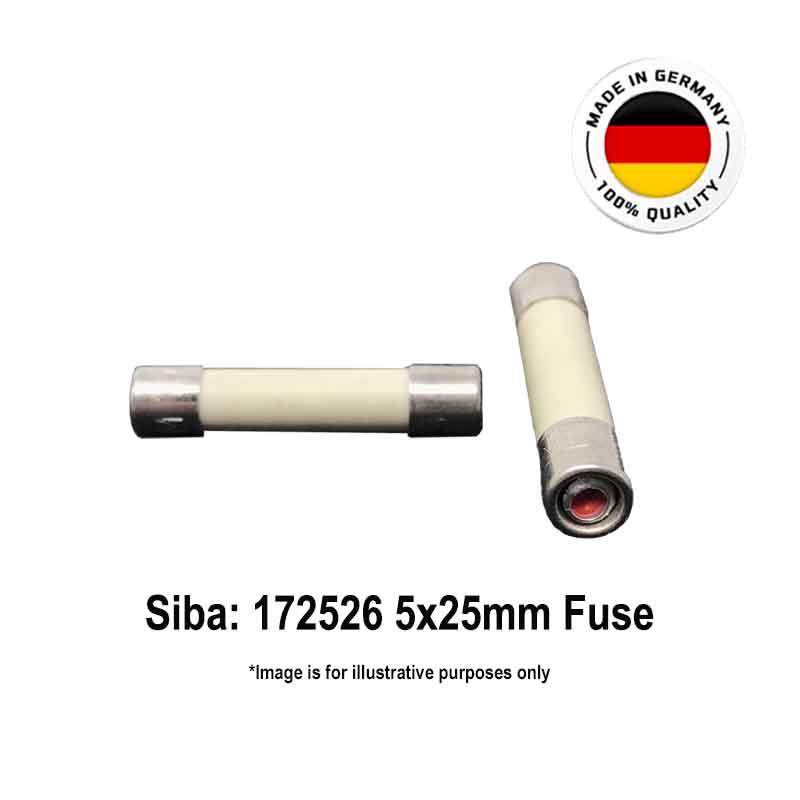

- Non-Transparent Ceramic Tube Fuse with indicator
- DIN 41576-2
Optional
- Available Rated Current: 0.005, 0.0063, 0.008, 0.1, 0.125, 0.16, 0.2, 0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8 Amps
Technical Data
Manufacturer: Siba
Series: 172526
Fuse Type: Miniature Ceramic Tube
Current Rating (A): 630mA
Voltage Rating (Vac): 250 Vac
AC Breaking Capacity (kA): 1.5 kA

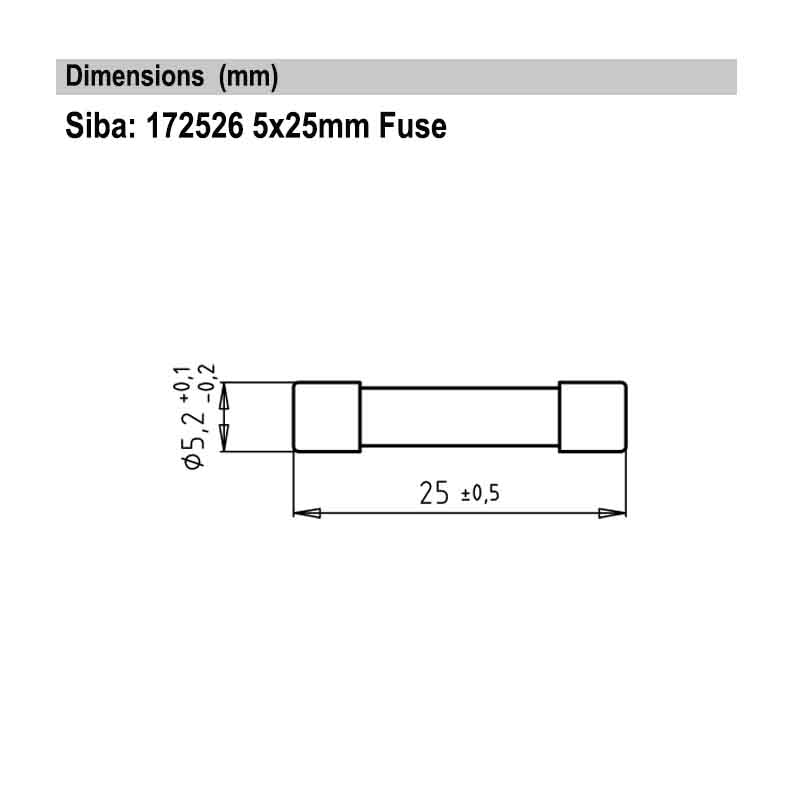

Size: 5x25mm
Power Loss (W): 0.2 W
Fuse Blown Indicator: With Indicator
Standards: DIN 41576-2, CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
