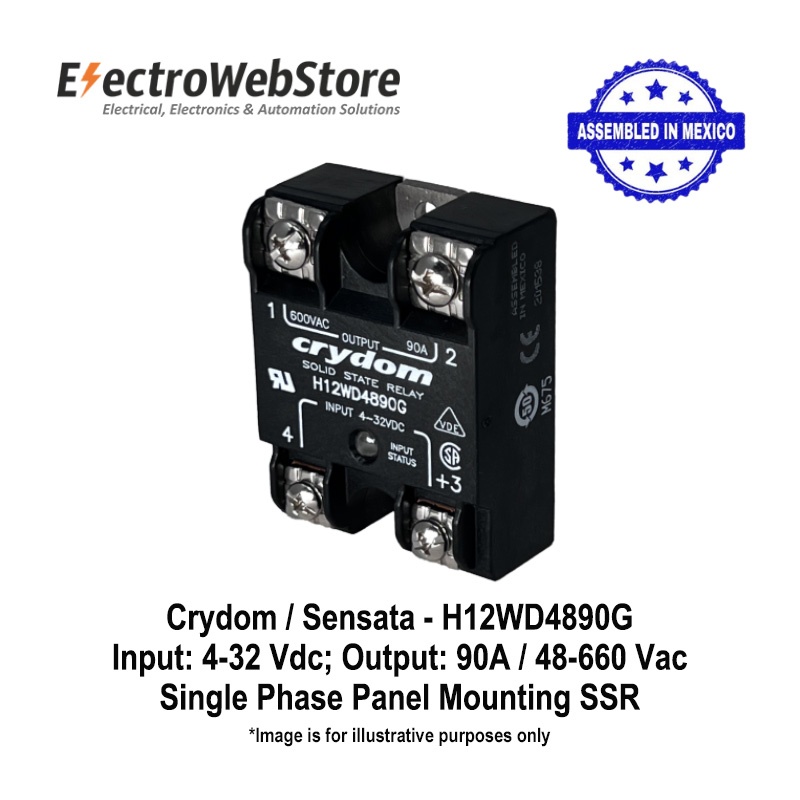

H12WD4890G

Single Phase Zero Voltage Turn-on SSR (without integrated Heat-Sink): Input: 4-32 Vdc; Output: 90A / 48-660 Vac, without internal Over-Voltage Protection; without Snubber; with Input Status LED Indicator.

Manufacturer: Crydom / Sensata
Country of Origin : Mexico
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 5
Order in Multiples of Quantity: 5
Required Quantity:
Price on Request

Product Features:

  • Low off-state leakage current (snubberless)
  • SCR output for heavy industrial loads
  • Zero Voltage Turn-on Output
  • UL/CSA/VDE Approved, CE Compliant to EN60950-1
  • Improved SEMS screw and washer
  • Redesigned housing with anti-rotation barriers
  • DC control
  • Direct bond copper substrate
  • EMC Compliant to Level 3
  • Direct power lead frame
  • Epoxy free design

Optional

  • Available Ratings: 25A, 50A, 75A, 90A, 125A @ 48-530 Vac
  • Instantaneous Turn-on Output
  • With Overvoltage Protection
Technical Data
Manufacturer: Crydom / Sensata
Series: H1
Rated Load Current: 90 Amps
Operating Voltage: 48-660 Vac
Transient Overvoltage: 1200 Vpk
Control Voltage Range: 4-32 Vdc
Switching Type: Zero Voltage Turn-On
Overvoltage Protection: Not Included
Input Status LED: Included
Termination: Screw
Thermal Pad: Not Included
Baseplate Material: Aluminium
Weight: 74.9 g
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
