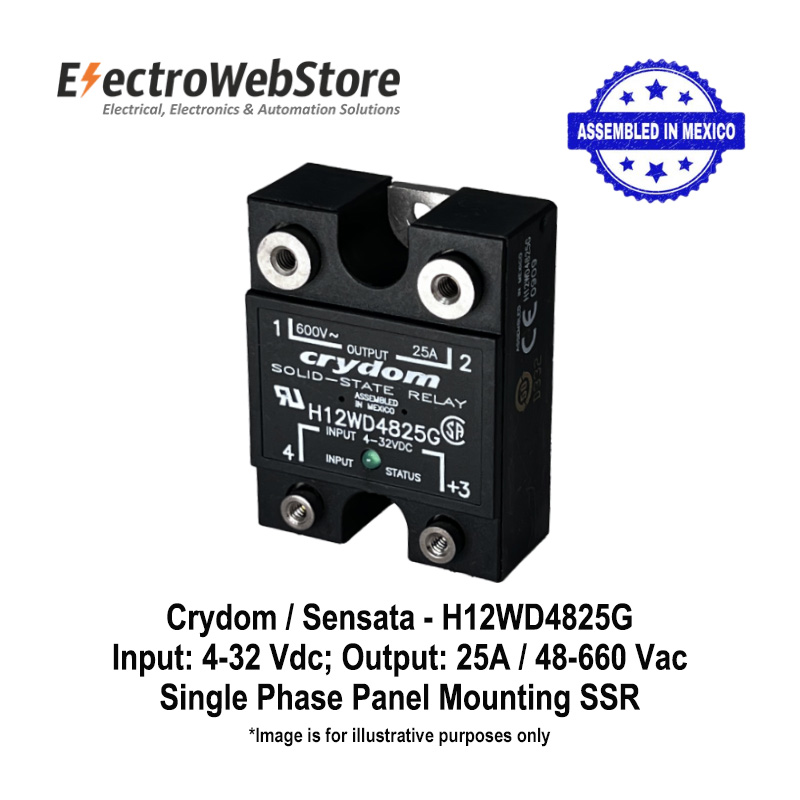

H12WD4825G
Single Phase Zero Voltage Turn-on SSR (without integrated Heat-Sink): Input: 4-32 Vdc; Output: 25A / 48-660 Vac, without internal Over-Voltage Protection; without Snubber; with Input Status LED Indicator.
H12WD4825G
Product Features:
- Low off-state leakage current (snubberless)
- SCR output for heavy industrial loads
- Zero Voltage Turn-on Output
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- DC control
- Direct bond copper substrate
- EMC Compliant to Level 3
- Direct power lead frame
- Epoxy free design
Optional
- Available Ratings: 25A, 50A, 75A, 90A, 125A @ 48-530 Vac
- Instantaneous Turn-on Output
- With Overvoltage Protection
Technical Data
Manufacturer: Crydom / Sensata
Series: H1
Rated Load Current: 25 Amps
Transient Overvoltage: 1200 Vpk
Control Voltage Range: 4-32 Vdc
Switching Type: Zero Voltage Turn-On
Overvoltage Protection: Not Included
Input Status LED: Included
Termination: Screw
Thermal Pad: Not Included
Baseplate Material: Aluminium
Weight: 74.9 g
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
