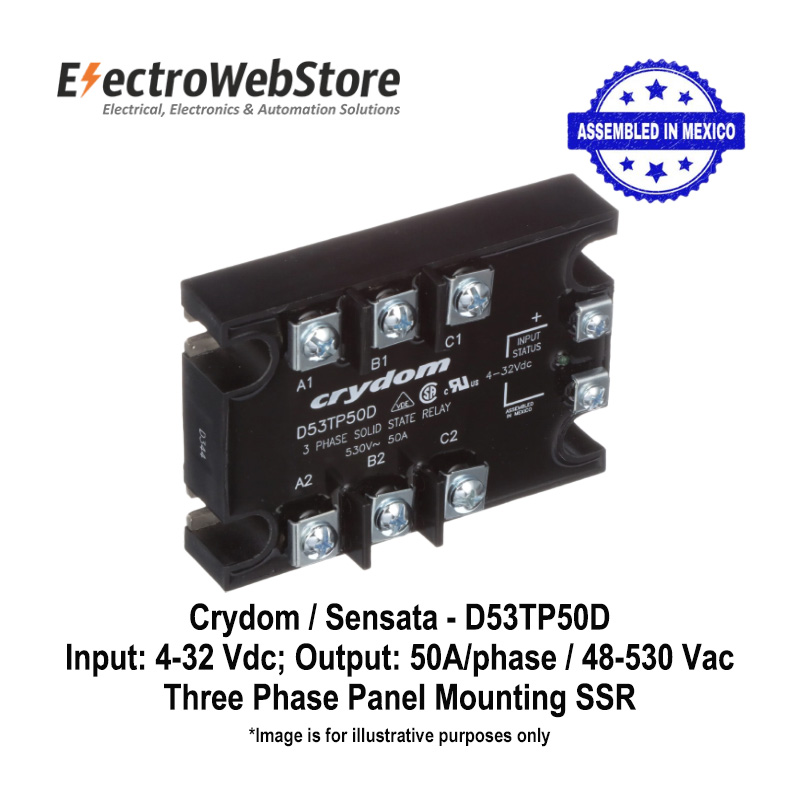

D53TP50D
Three-Phase Zero Voltage Turn-on DC-AC SSR (without integrated Heat-Sink): Input: 4-32 Vdc; Output: 50A per Phase/ 48-530 Vac; with Input Status LED Indicator.
D53TP50D
Product Features:
- SCR output for heavy industrial loads
- Transient protection built in
- AC or DC control
- UL Recognized, CE Compliant to EN60950-1
Optional
- Available Ratings: 25A @ 48-530 Vac
- Control Voltage: 90-280 Vac
- Instantaneous Turn-on Output
Technical Data
Manufacturer: Crydom / Sensata
Series: 53TP
Rated Load Current: 50 Amps
Transient Overvoltage: 1200 Vpk
Control Voltage Range: 4-32 Vdc
Switching Type: Zero Voltage Turn-On
Overvoltage Protection: Not Included
Input Status LED: Included
Termination: Screw
Thermal Pad: Not Included
Weight: 315 g
Special Notes

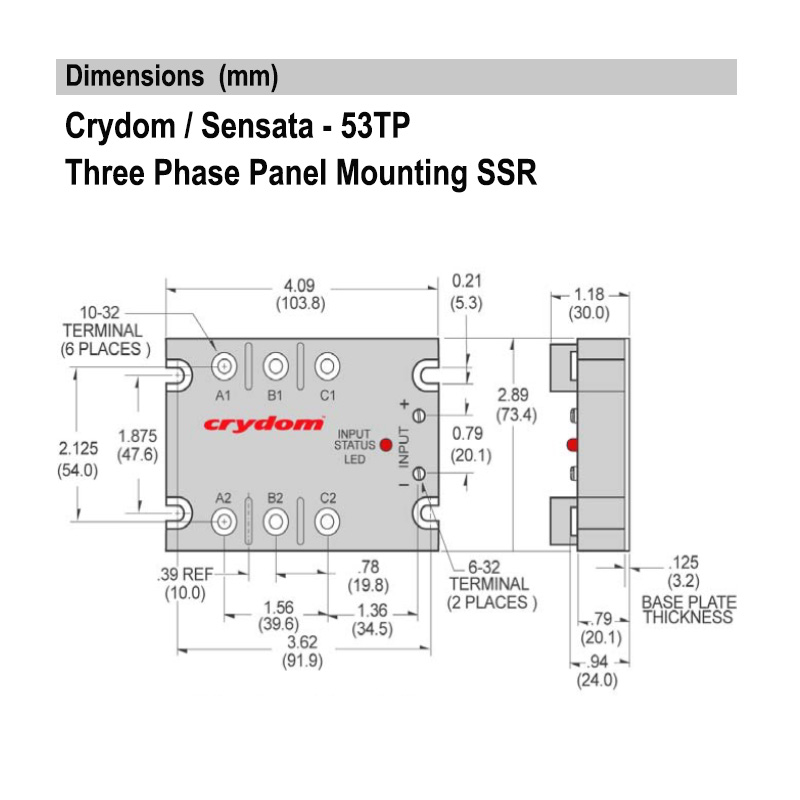

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
