WDR-60-5

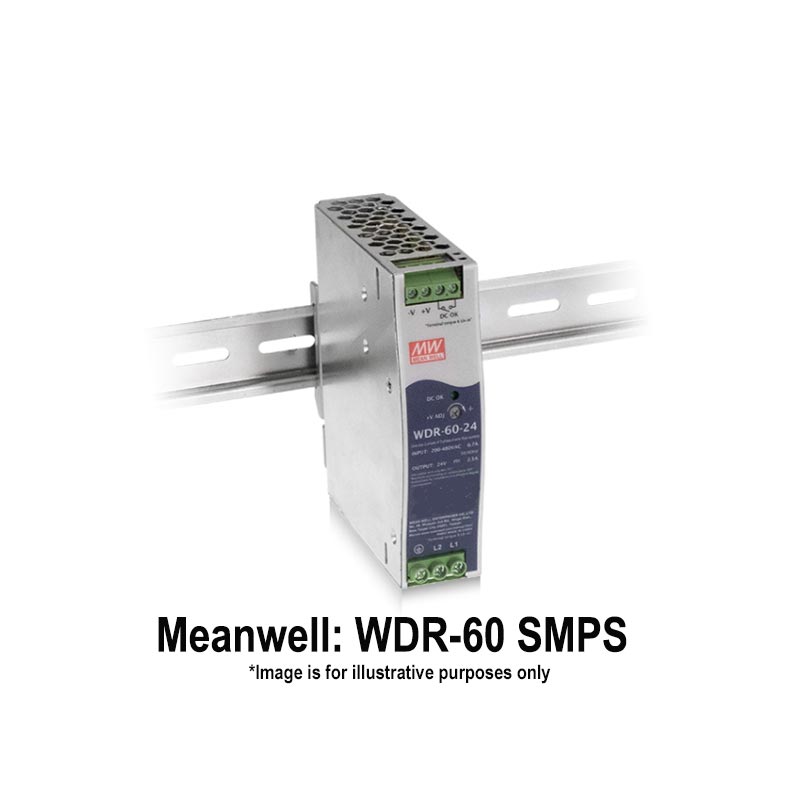

Meanwell Single and Two Phase with Wide Input Voltage Range DIN Rail Mounting 60 Watts SMPS, Input: 180-550 Vac/254-780 Vdc; Output: 5 Vdc/0 - 10 Amps; Tol.: +/-2%; R&N: 100 mV; Effi.: 83.5%/400Vac; WxHxD: 32x125.2x102mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon WDR-60-5
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • 180 to 550 Vac ultra wide input for 1-phase or 2-phase
  • 4.7 KVac I/O high isolation(Reinforced Isolation)
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • 32mm slim width
  • -30 to +85°C ultra-wide operating temperature (>+60°C derating)
  • Over Voltage category III
  • Cooling by free air convection
  • DC OK Relay contact
  • DC Output Voltage adjustable (+20%)
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: WDR
Wattage: 60 W
Output Voltage (DC): 5 Vdc
Output Current (A): 0 - 10.0 A
Product Type: Single/Two Phase, Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 180-550 Vac
Input Voltage (DC): 254-780 Vdc
Tolerance: +/-2%
Ripple & Noise (max.): 100mV
Efficiency (Typ.): 83.5% (400Vac)
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: Free Air Convection
Safety Standards: UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved; design refer to GL and BS EN/EN60204-1(By request)
EMC Emission: EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, EAC TP TC 020, heavy industry level

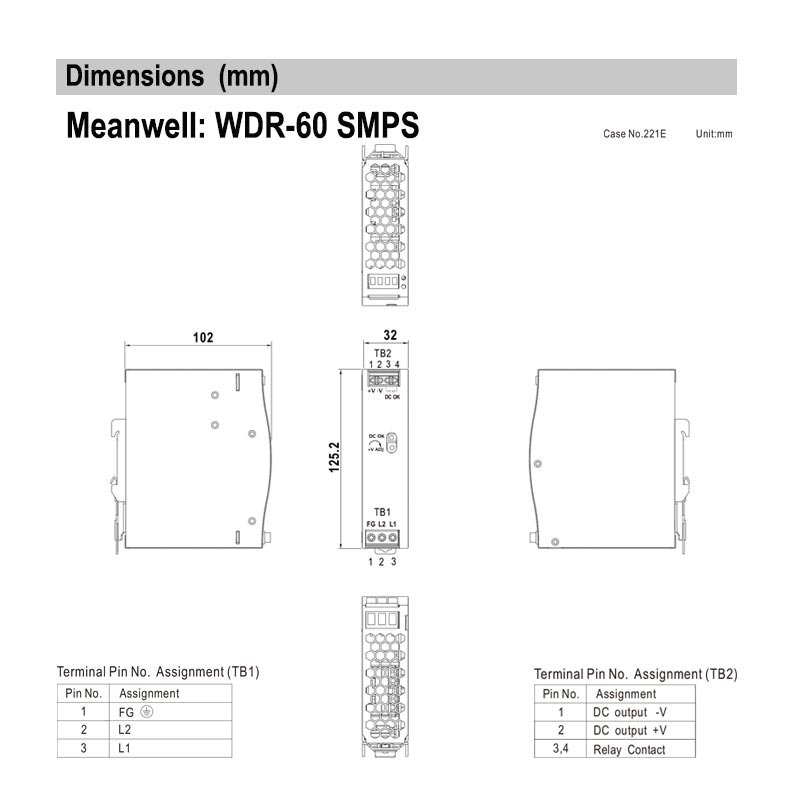

Dimensions WxHxD (mm): 32x125.2x102mm
Weight/Piece (gms): 450
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
