WDR-480-48

Name: WDR-480-48
Brand: Meanwell
Availability: InStock

Meanwell Single and Two Phase with Wide Input Voltage Range DIN Rail Mounting 480 Watts SMPS, Input: 180-550 Vac/254-780 Vdc; Output: 48 Vdc/0 - 10 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 93%; WxHxD: 85.5x125.2x128.5mm

Manufacturer: Meanwell

Technical Datasheet:

WDR-480-48

Datasheet 2

Packaging Quantity: 1

Minimum Order Quantity: 2

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Single and Two Phase wide input range 180 to 550VAC
Built-in active PFC circuit compliance to BS EN/EN61000-3-2
High efficiency 91 % and low power dissipation
Protections: Short Circuit/Overload/Over Voltage/Over Temperature
UL508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Cooling by free air convection
Built-in DC OK Relay contact
100% full load burn-in test
Warranty: 1-Year from date of purchase

Technical Data

Manufacturer: Meanwell

Series: WDR

Wattage: 480 W

Output Voltage (DC): 48 Vdc

Output Current (A): 0 - 10.0 A

Product Type: Single/Two Phase, Single Output SMPS

Mounting Type: DIN Rail Mounting

Input Voltage (AC): 180-550 Vac

Input Voltage (DC): 254-780 Vdc

Tolerance: +/-1%

Ripple & Noise (max.): 150mV

Efficiency (Typ.): 93.00%

Protections: Short Circuit, Overload, Over Voltage, Over Temperature

Cooling by: Free Air Convection

Safety Standards: UL508,AS/NZS 62368.1,EAC TP TC 004 approved,IEC62368-1 CB approved by SIQ,design refer to GL;(meet BS EN/EN60204-1)

EMC Emission: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

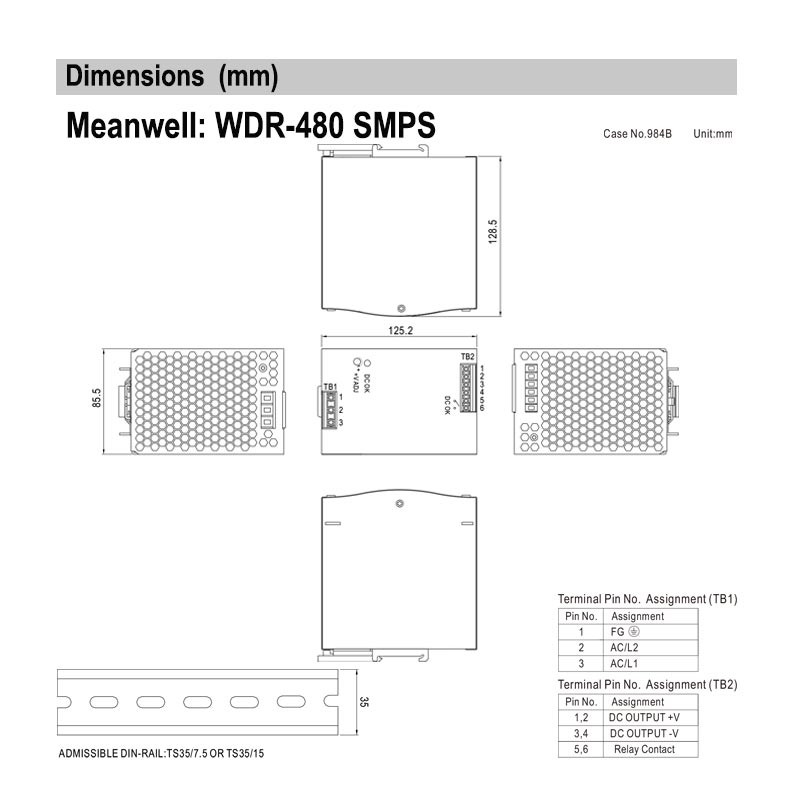

Dimensions WxHxD (mm): 85.5x125.2x128.5mm

Weight/Piece (gms): 1700

Warranty: 1-Year

Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
