TDR-960-48

Meanwell 3-Phase (Dual Phase operation possible) DIN Rail Mounting 960 Watts SMPS, Input: 340-550 Vac/480-780 Vdc; Output: 48 Vdc/0 - 20 Amps; Tol.: +/-1%; R&N: 250 mV; Effi.: 94.5%; WxHxD: 110x125.2x150mm

Manufacturer: Meanwell

Technical Datasheet:

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Three-Phase 340 to 550VAC wide range input (Dual Phase operation possible)
110mm width
Built-in active PFC function compliance to EN61000-3-2
High efficiency 94.5% and low power dissipation
Protections: Short circuit/Overload/Over Voltage/Over Temperature
Cooling by free air convection
Built-in constant current limiting circuit
UL508 (industrial control equipment) Approved
EN61000-6-2 (EN50082-2) industrial immunity level
DC OK Relay contact
Warranty: 1-Year from date of purchase

Technical Data

Manufacturer: Meanwell

Series: TDR

Wattage: 960 W

Output Voltage (DC): 48 Vdc

Output Current (A): 0 - 20.0 A

Product Type: 3-Phase/2-Phase SMPS

Mounting Type: DIN Rail Mounting

Input Voltage (AC): 340-550 Vac

Input Voltage (DC): 480-780 Vdc

Tolerance: +/-1%

Ripple & Noise (max.): 250mV

Efficiency (Typ.): 94.50%

Protections: Short Circuit, Overload, Over Voltage, Over Temperature

Cooling by: Free Air Convection

Safety Standards: UL508, AS/NZS62368.1, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ

EMC Emission: EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN55024, EAC TP TC 020, EN61000-6-2, heavy industry level

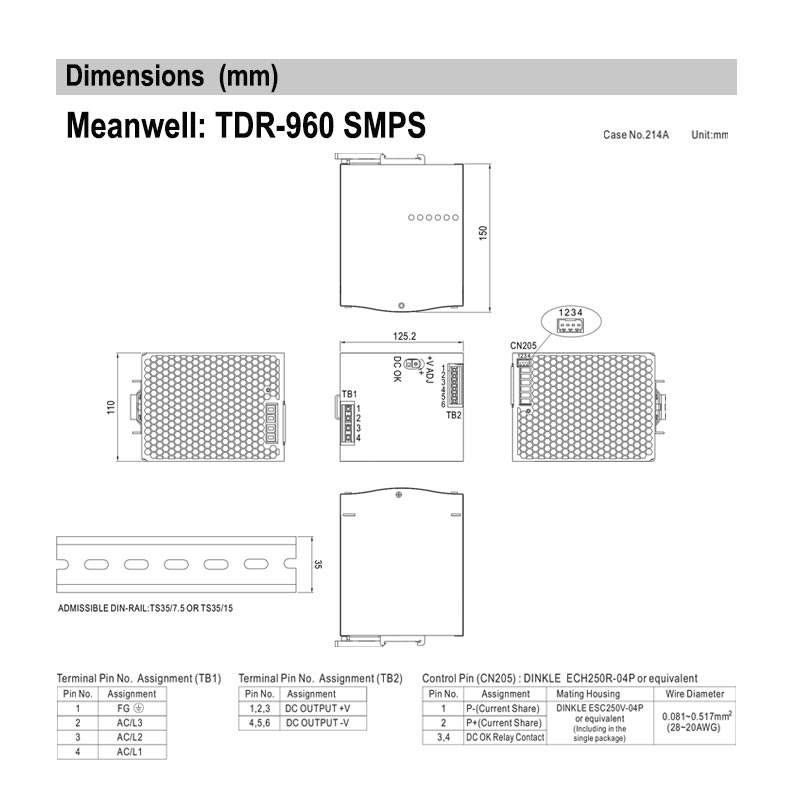

Dimensions WxHxD (mm): 110x125.2x150mm

Weight/Piece (gms): 2470

Warranty: 1-Year

Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
