NDR-240-24

Meanwell Single Phase DIN Rail Mounting 240 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 24 Vdc/0 - 10 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 88.5%; WxHxD: 63x125.2x113.5mm

Manufacturer: Meanwell
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input/Full range
  • Built-in active PFC function
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • Cooling by free air convection
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: NDR
Wattage: 240 W
Output Voltage (DC): 24 Vdc
Output Current (A): 0 - 10.0 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 90-264 Vac
Input Voltage (DC): 127-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 150mV
Efficiency (Typ.): 88.50%
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: Free Air Convection
Safety Standards: UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; (meet EN60204-1)
EMC Emission: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438

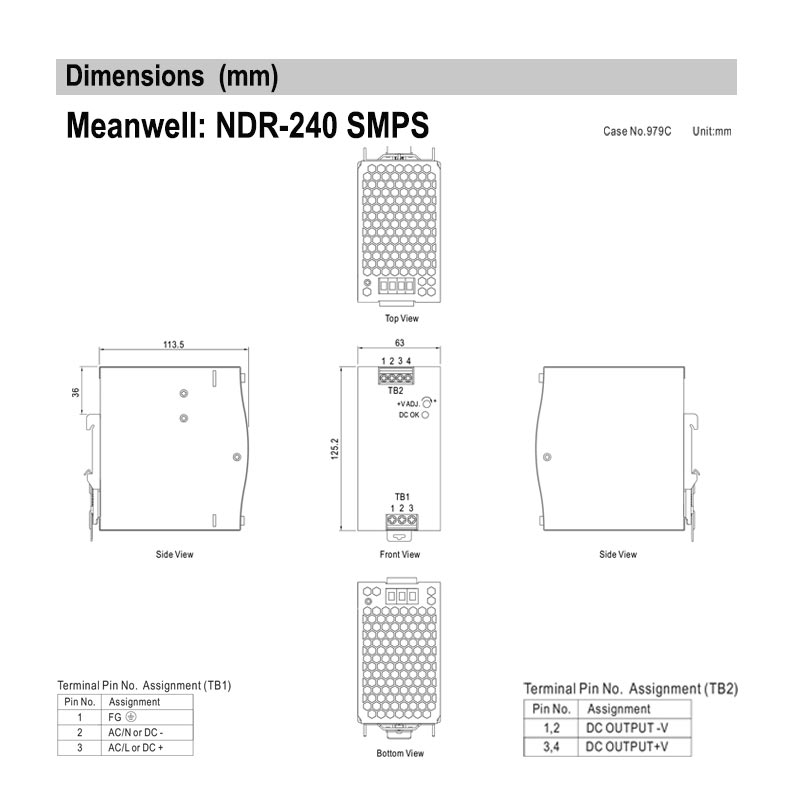

Dimensions WxHxD (mm): 63x125.2x113.5mm
Weight/Piece (gms): 1000
Warranty: 1-Year
