MDR-40-24

Meanwell Single Phase DIN Rail Mounting 40 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 24 Vdc/0 - 1.70 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 88%; WxHxD: 40x90x100mm

Manufacturer: Meanwell
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input/Full range
  • Protections: Short circuit / Overload/ Over voltage
  • Cooling by free air convection
  • Class I, Div 2 Hazardous Locations T4
  • DC OK Relay contact
  • No load power consumption <0.75W
  • LED indicator for Power ON
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: MDR
Wattage: 40 W
Output Voltage (DC): 24 Vdc
Output Current (A): 0 - 1.7 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 85-264 Vac
Input Voltage (DC): 120-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 150mV
Efficiency (Typ.): 88.00%
Protections: Short Circuit, Overload, Over Voltage
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: UL508, UL62368-1, TUV EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved
EMC Emission: Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B

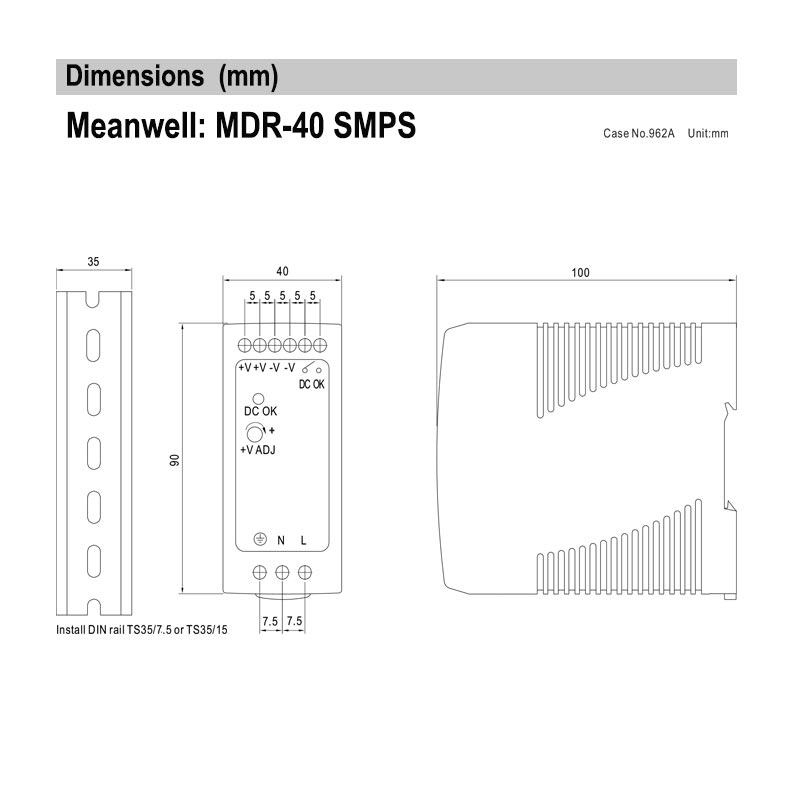

Dimensions WxHxD (mm): 40x90x100mm
Weight/Piece (gms): 300
Warranty: 1-Year
