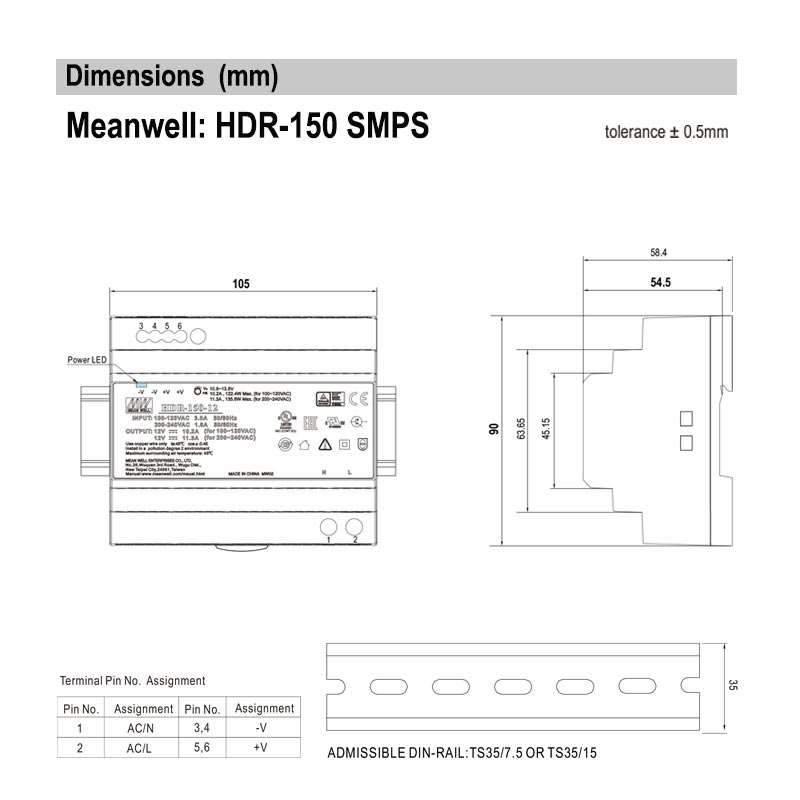

HDR-150-24
Meanwell Single Phase DIN Rail Mounting 150 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 24 Vdc/0 - 6.25 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 90.5%; WxHxD: 105x90x54.5mm
SKU
HDR-150-24
Technical Datasheet:
- Ultra slim design with 105mm (6SU) width, DIN Rail mounting
- Universal input 85~264VAC(277VAC operational)
- No load power consumption <0.3W
- Isolation class II
- Pass LPS (Limited Power Source) for Blank type
- DC Output Voltage adjustable
- Protections: Short Circuit/Overload/Over Voltage
- Over Voltage category III
- Cooling by free air convection (working temperature:-30 to +70°C)
- Warranty: 1-Year from date of purchase
