HDR-15-12

Meanwell Single Phase DIN Rail Mounting 15 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 12 Vdc/0 - 1.25 Amps; Tol.: +/-1%; R&N: 120 mV; Effi.: 85.0%; WxHxD: 17.5x90x54.5mm

Manufacturer: Meanwell
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Ultra slim design with 17.5mm (1SU) width, DIN Rail mounting
  • Universal input 85~264VAC(277VAC operational)
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (Limited power source)
  • DC Output Voltage adjustable
  • Protections: Short Circuit/Overload/Over Voltage
  • Over Voltage category III
  • Cooling by free air convection (working temperature:-30 to +70°C)
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: HDR
Wattage: 15 W
Output Voltage (DC): 12 Vdc
Output Current (A): 0 - 1.25 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 85-264 Vac
Input Voltage (DC): 120-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 120mV
Efficiency (Typ.): 85.00%
Protections: Short Circuit, Overload, Over Voltage
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV BS EN/EN62368-1
EMC Emission: EN55032 class B, EN61000-3-2,3, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11, EN61204-3

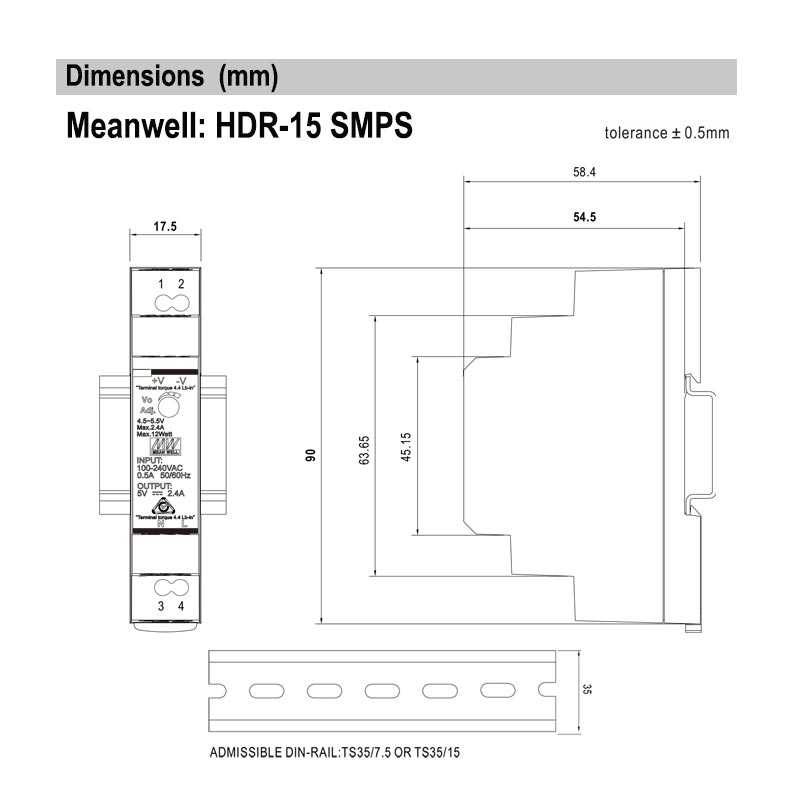

Dimensions WxHxD (mm): 17.5x90x54.5mm
Weight/Piece (gms): 78
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
