EDR-120-24

Meanwell Single Phase DIN Rail Mounting 120 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 24 Vdc/0 - 5 Amps; Tol.: +/-1%; R&N: 120 mV; Effi.: 87.5%; WxHxD: 40x125.2x113.5mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon EDR-120-24
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input/Full range
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • Cooling by free air convection
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: EDR
Wattage: 120 W
Output Voltage (DC): 24 Vdc
Output Current (A): 0 - 5.0 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 90-264 Vac
Input Voltage (DC): 127-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 120mV
Efficiency (Typ.): 87.50%
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: Free Air Convection
Safety Standards: UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1)
EMC Emission: Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class A

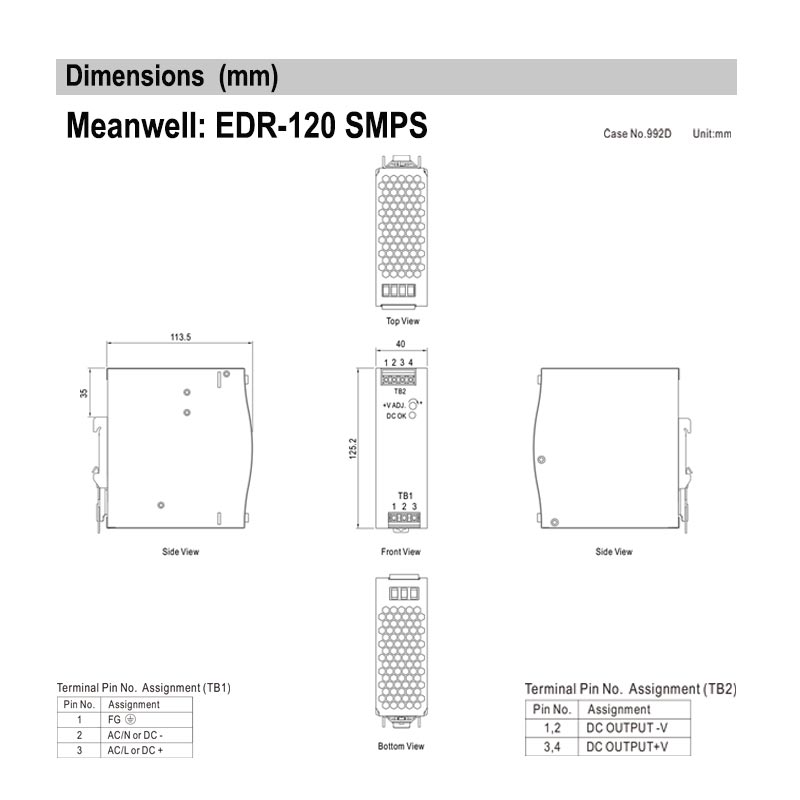

Dimensions WxHxD (mm): 40x125.2x113.5mm
Weight/Piece (gms): 600
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
