DRA-60-24

Meanwell Single Phase DIN Rail Mounting 60 Watts SMPS with adjustable O/p Current via 1-10 Vdc, PWM Signal or Resistance, Input: 90-264 Vac/127-370 Vdc; Output: 24 Vdc/0 - 2.5 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 87%; WxHxD: 40x90x100mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon DRA-60-24
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input/Full range
  • Protections: Short Circuit/Overload/Over Voltage
  • Output Voltage adjustable through internal potentiometer
  • Output Current adjustable through external 1 to 10Vdc, PWM Signal or Resistance
  • Pass LPS
  • Cooling by free air convection
  • LED indicator for Power ON
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: DRA
Wattage: 60 W
Output Voltage (DC): 24 Vdc
Output Current (A): 0 - 2.5 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: DIN Rail Mounting
Input Voltage (AC): 90-264 Vac
Input Voltage (DC): 127-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 150mV
Efficiency (Typ.): 87.00%
Protections: Short Circuit, Overload, Over Voltage
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC Emission: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

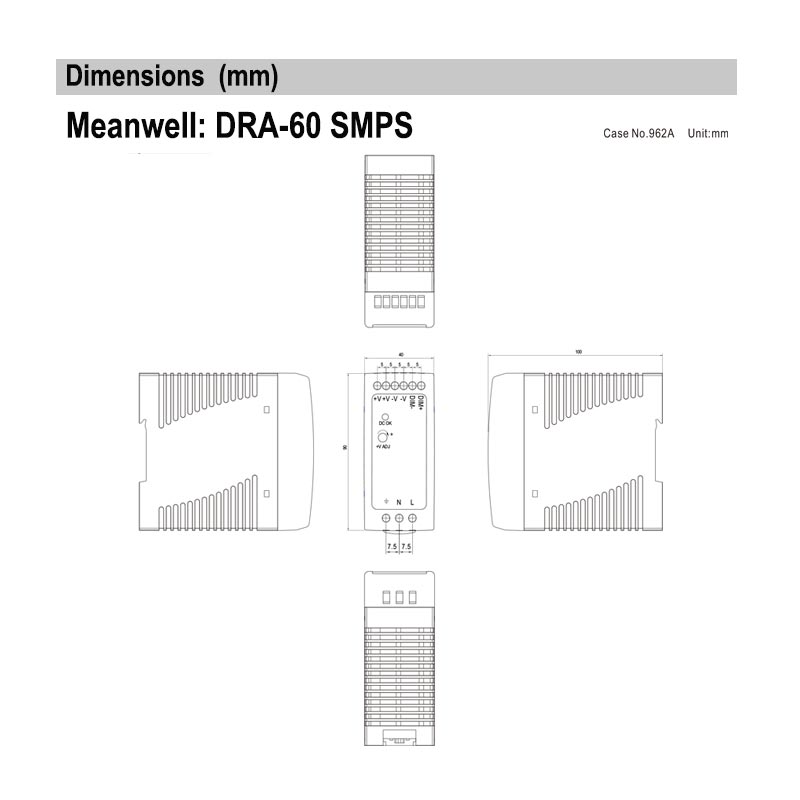

Dimensions WxHxD (mm): 40x90x100mm
Weight/Piece (gms): 300
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
